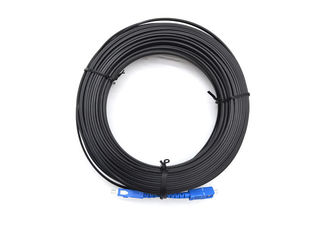

GJYFXCH SC/UPC SM DX Optical Fiber Drop Cable Patch Cord Jumper
Characteristics
1. Cost control. A fixed drop cable pigtail connector cost is more lower than a mechanical fast connector.
2. Convenient installation. The fixed connector will be connected by factory before delivery, not need to install when using, it will help customer to save a lot of time and installation cost.
3. Higher reliability performance. The return loss of the fixed connector is 50dB even higher than it, in the sample photo, you will find the return loss of 30M sample cable is 63.8dB, this data can be controled and tested with professional producing equipment before deliver to customer.
Application
1.Optical Distribution Frame
2.Computer Networks
3.Fiber Optic Communication Systems
4.Optical Access Networks
5.Local Area Network
6.Fiber Optic Sensors
7.Fiber Optic Data Communications
8.Fiber Optic Cable Television
9.Fiber Optic Test Equipment
10.Connecting Between Backbone Optical Cable and RX
11.Access wiring
Specification
| Parameters | FC, SC, ST, LC, MU, D4, DIN, SMA | MT-RJ | E2000 |
| PC | UPC | APC | PC | PC | APC | UPC |
| Mode | SM | MM | SM | MM | SM | SM | MM | SM | SM | SM |
| Insertion loss (dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss (dB) | ≥45 | ≥35 | ≥50 | ≥50 | ≥60 | ≥35 | ≥25 | ≥45 | ≥60 | ≥50 |
| Repeatability (dB) | ≤0.2 |
| Interchangeability(dB) | ≤0.2 |
| Service life | >1000times |
| Tensile strength | >10kg |
| Operating Temp(°C) | -30°C ~+75°C | -10°C ~+75°C |
| Storage Temp(°C) | -40°C to +85°C |
Our Service
Nia Fiber specializes in manufacturering of FTTH products and fiber optic cables. Nia Fiber provides connectivity solutions for some of the largest distributors and OEM accounts in the world. We provide both standard and custom solutions for our customer's specific requirements.
Total Quality is the guiding principle of Nia Fiber's business life. It requires each of us, individually and in teams, to understand, anticipate, and surpass the expectations of our customers. Total Quality demands continuous improvement in all our processes, products, and services. Our success depends on our ability to learn from experience, to embrace change, and to achieve the full involvement of all our employees. The company's expertise assures that each customer will receive the highest quality of products and service on each and every product. By purchasing Nia Fiber products, our customers can be assured that they are getting components that are fully warranted.
All products can be custom manufactured to fit customer requirements.If you need something special, Nia Fiber can design and manufacture a custom fiber optic cable or cable assembly to meet your requirements.
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory, we have 6 workshops, patch cord, hardware, injection moulding, painting, die making work shop.
Q2: what's your products' quality control?
A: Our tenet is "Quality first, Prestige first".
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.
3.The supporting of boss on quality control.
4.Our products have passed the CE & ROHS & ISO etc.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q4. Q: Could you offer the OEM service?
A: Yes, we can provide both OEM and ODM service, manufacture as per your request.
Q5. May I take a sample order
A: Yes, Professional manufacturer, 100% tested, samples are available.
Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shippment and how long does it take to arrive?
A: Goods usually be shipped by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q8. Ordering guide as follow :
Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
