Technical specifications:
| Item |
Unit |

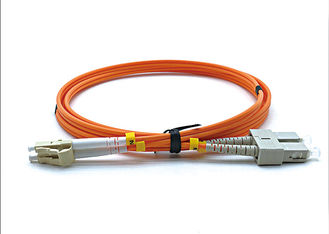

LC/SC/FC/ST Fiber Patch Cord |
| |
|
SM |
MM |
| Fiber Diameter |
um |
9/125 |
65.5/125 |
50/125 |
| Endface Type |
|
PC |
UPC |
APC |
PC |
PC |
| Insertion Loss |
db |
≤0.2 |
≤0.15 |
≤0.2 |
≤0.1 |
≤0.1 |
| Return Loss |
db |
≥45 |
≥50 |
≥60 |
- |
- |
| Insert-pull Test |
db |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.15 |
≤0.15 |
| Interchangeability |
db |
≤0.1 |
≤0.1 |
≤0.15 |
≤0.1 |
≤0.1 |
| Temperature Range |
℃ |
-40~+80 |
Features:
Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Applications:
Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
