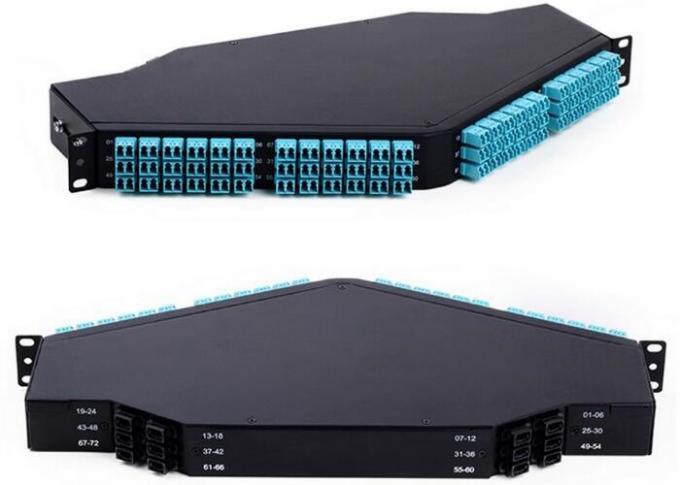

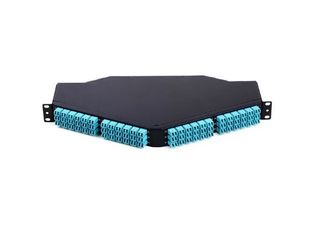

Tri-angle 144 Cores MPO-LC Fiber Optic Equipment Patch Panel
Features:
19-inch fixed type
4 cable entrance at rear, 3 parts front panel
Available for Simplex FC, SC, ST, LC adapter
12, 24, 48, 96 ports are available
Maximum capacity: 48 fibers
MTP/MPO standard compliant multifibre connector
LC (SFF data center standard), SC discrete interface
OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)
12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts
Polarity A (standard), B or C
Factory terminated and tested
High performance zirconia sleeve adaptors
Application:
1. Telecommunication networks
2. CATV Networks; LAN Network
3. Active device termination
4. FTTH
Oder information:
| CFO14-144-LC | MPO 144 Fiber Patch Panel |
| CFO15-144-LC |
MPO 144 Fiber Patch Panel |
| AB07-6SC | MPO/MTP cassette 6Port for SC simplex adapter (or LC duplex adapter) |
| APP07 | MPO/MTP Patch panel 19” 1U without cassette |
Specification:
| UPC SM | PC MM | APC SM |
| Insertion Loss | ≤0.4dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | ≥20dB | ≥60dB |
| Operating Temperature | –40 °C to +75 °C |
| Durability | ≤0.3 dB typical change , 500 matings |
| Available Wavelengths | SM=1310 & 1550nm, MM=850nm |
FAQ:
1,Can we get free samples?
Yes. Free samples can be offered for your test. You only need to pay the freight.
2,What is the quality of the products?
All the products are of high quality. We promise 100% recall policy if they are unqualified.
3,How will we do if we are not familiar with the optical products?
Don’t worry. We OMC has a team of experts who can offer professional suggestion for customer’s Optical network Project.
4,We are confused that the freight is too high.
Cost-effective logistic solution can also be chosen for you.
5,What is your quality control.
(1).source guarantee. We have our own long-term suppliers. All the products are POHS certificated and satisfy exporting quality level demand.
(2).quality test. It runs through the whole process from the Material to finished products. Such as package, surface, physical test, optical test. They are 100% tested.
(3)optical test. Our products are strictly tested in accordance with IEC and ITU standard.
(4)we have 30% spot test by Quality Assurance Department after the products finished.
