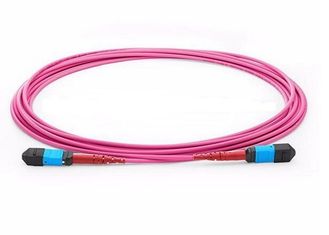

OM1 OM2 MPO Trunk Cable , MTP - MPO Fiber Connector For LAN Network
MPO solution is designed for high-density fber connections and high-speed data center cabling.
We provide an economic highly reliable solution for your fber network systems.

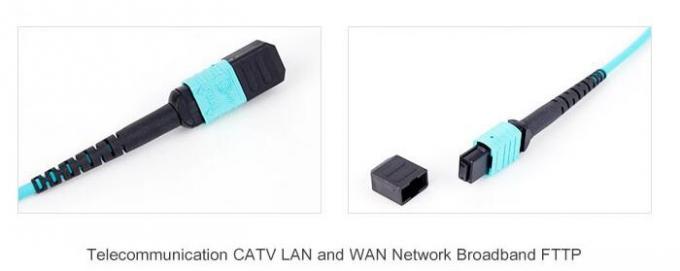

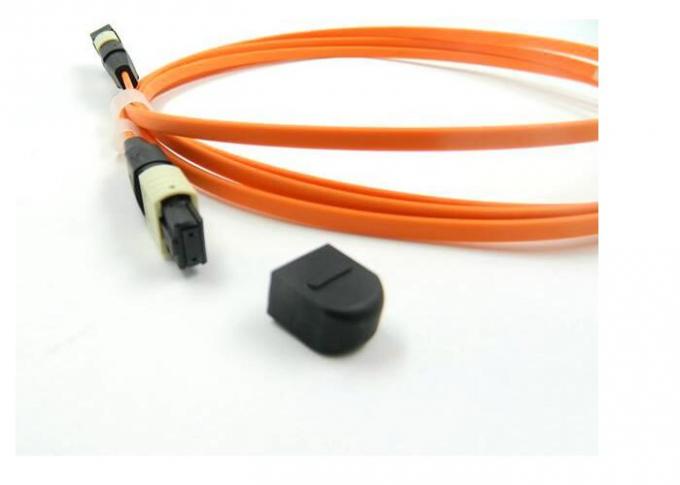

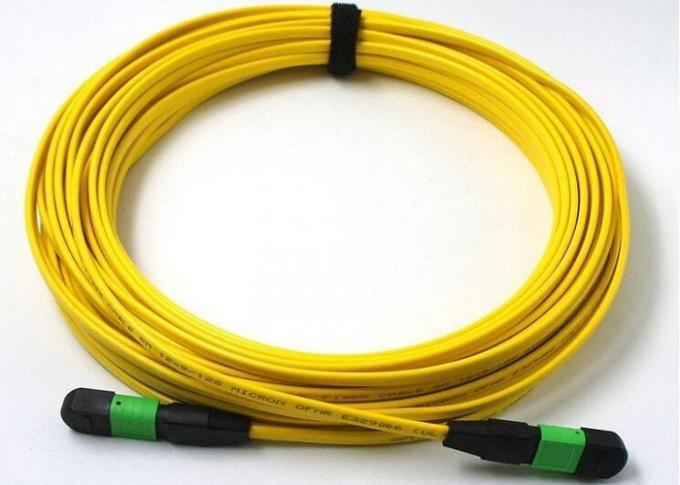

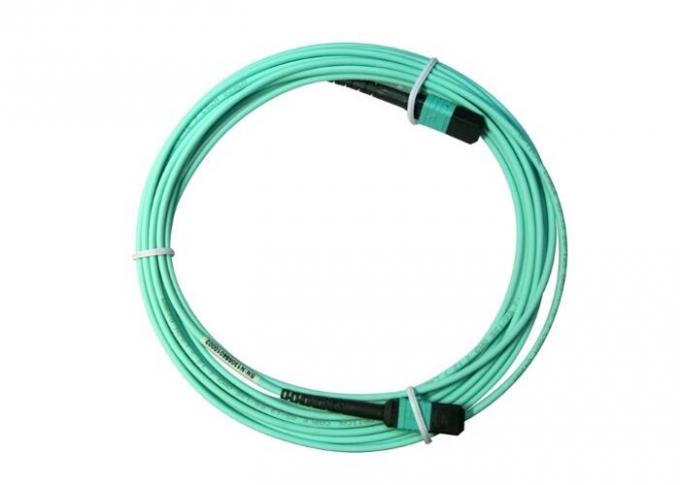

MPO and MTP fiber optic patch cords and cable assemblies, with 8-core, 12-core, and 24-core, compatible for round cable or flat cable, Single mode and Multimode are available, male connector and female connector are available.
1. Features:
1. Eliminate termination errors, Min installation time
2. Each cable is 100% tested for low insertion loss and back reflection
3. Optimized performance - Elite MTP and discrete premium connectorSupport 100GBASE-SR10 in applicable parallel optics networks
4. Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard
2. Application:
1. Telecommunication networks
2. CATV Networks; LAN Network
3. Active device termination
4. Optiucal fiber data transmission
3. Geometry Inspection:
| Specifications |
Min. value |
Max. Value |
| Radius of curve |
long axis |
1000nm |
∞ |
|
| short axis |
50mm |
∞ |
|
| Angle |
long axis |
-0.3° |
0.3° |
|
| short axis APC |
7.7° |
8.3° |
|
| |
|
short axis PC |
-0.3° |
0.3° |
|
| Fiber height |
1000nm |
5000nm |
| D-Value of fiber height |
N/A |
800nm |
| Neighboring D-value of fiber height |
N/A |
500nm |
| Ferrule length |
7.8mm |
N/A |
4. Polish Test:
| diameter ( um) |
| Region |
Size |
Defects |
|
| A |
0um~25um |
No any dirty, scratch or other defects. |
|
| B |
25um~115um |
Scratch ≤2um, 1pcs pit ≤5um,1pcs non-removable dirty ≤5um 1pcs, total defects not exceed 2pcs |
|
| C |
115um~400um |
N/A |
|
| Note: |
| 1. With 200x microscope |
| 2 The cleaned defects will be look at fine. |
| 3. Fingerprint, oil and any removable dirties should not be on the end-face. |
5. What is your quality control.
(1).source guarantee. We have our own long-term suppliers. All the products are POHS certificated and satisfy exporting quality level demand.
(2).quality test. It runs through the whole process from the Material to finished products. Such as package, surface, physical test, optical test. They are 100% tested.
(3)optical test. Our products are strictly tested in accordance with IEC and ITU standard.
(4)we have 30% spot test by Quality Assurance Department after the products finished.
6. Nia Fiber focus on quality:
Nia Fiber always focuese on reliable quality development. by complying with our quality policy" Continue to pursure excellent quality, offer the best products and services in order to realize customer needs and satisfaction", all along we strive for providing excellent products and service to meet and exceed our customer's need. Nia Fiber constantly works with modern quality management methods to ensure the whole service procedure is implemented flexibly and efficiently.
mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
