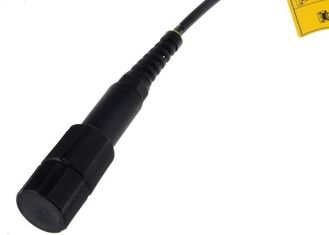

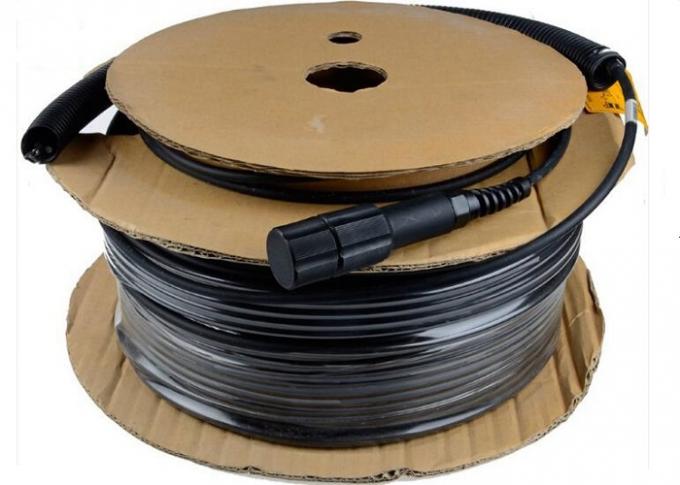

The PDLC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications.
The PDLC cable assemblies have passed tests like salt mist,vibration and shock and meet protection class IP67.
1. Standard Duplex LC connector, well connected with standard LC adaptor
2. Available Single mode and Multimode
3. IP67 protection, salt-mist proof, humidity proof,dust proof
4. Aluminum housing, compact design
5. Broad temperature range and wide range of indoor and outdoor cables
6. Easy Operation, reliable and cost-effective
2. Specification:
| Item |
Data |
| Insertion Loss |
≤0.3dB |
| Mechanical life |
500cycles |
| Working temperature |
-40°C~+70°C |
| Storage temperature |
-40°C~+70°C |
| Operating temperature |
-10°C~+50°C |
| Protection Level |
IP67 |
| Tensile Data |
Tensile between junction and fiber cable≥180N |
| Out shell inflaming retarding |
UL94 V-0 |
| Out shell Uvioresistant |
UL 746C |
| Authentication |
Meet with RoHS |
3. Nia Fiber care our life.
mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
Nia Fiber always foucuses on reliable quality development. By complying with our qulity policy"Continue to pursue excellent quality, offer the best products and serices in order to realize customer needs and satisfaction", all along we strive for providing excellent products and service to meet and exceed our customer's need. Nia Fiber constantly works with modern quality management methods to ensure the whole service procedure is implemented flexibly and efficiently.
Nia Fiber has established complete quality,environment and occupational health and safety assurance system to design, produce and supply its range of fiber cable and FTTH products.
We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
