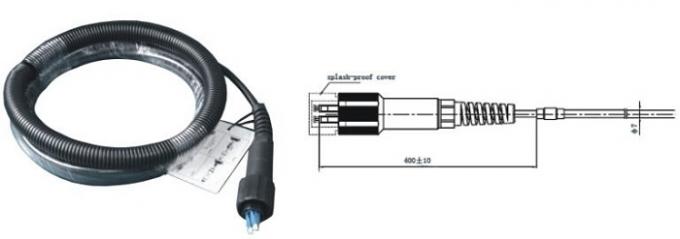

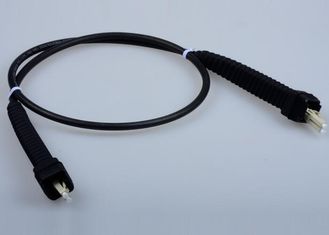

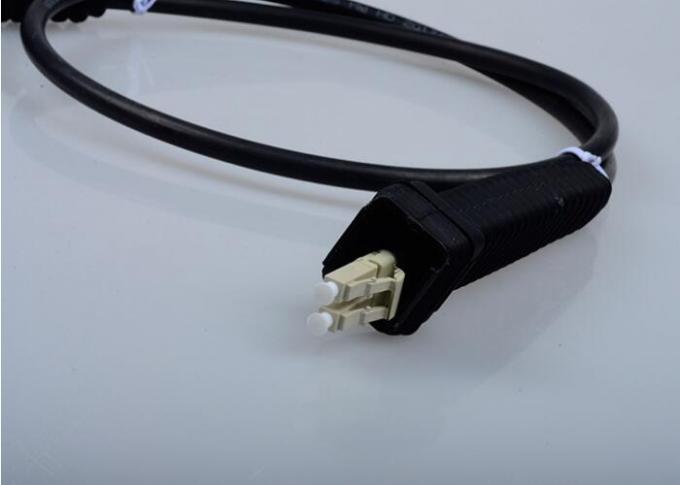

DLC - DLC Duplex Patch Cord 7.0mm , FTTa 4 Core Multimode Fiber Optic Cable

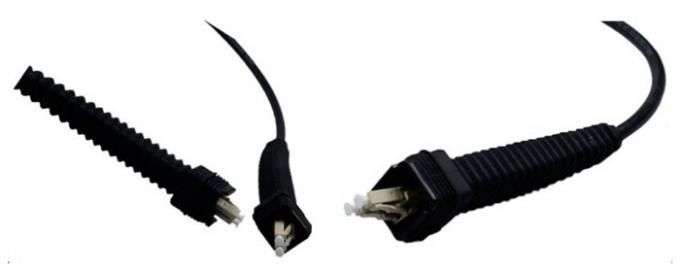

The PDLC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications.
The PDLC cable assemblies have passed tests like salt mist,vibration and shock and meet protection class IP67
1. Feature:
Good mechanical and environmental characteristics
flame retardant characteristics meet the requirements of relevant standards
The mechanical characteristics of jacket meet the requirements of relevant standards
Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission
Meet variours requirments of market and clients
2. Application:
3G 4G base stations used
Aerospace & defence
Equipment diagnosis
FO sensor
FTTa, FTTP,FTTX, WIMAX
BBU, RRU, RRH, LTE
3. Performance:
Insertion Loss: <=0.3dB
Repeatability:<=0.2dB
Fiber core: 2/4
Mating times:>=500N
Working temperature:-40-- +80
| ITEM |
PARAMETER |
| Connector type |
LC/UPC, SC/UPC, FC/UPC, ST/UPC. |
LC/APC, SC/APC, FC/APC, ST/APC |
| Insertion Loss |
<=0.2db |
<=0.3db |
| Return Loss |
>=50db |
>=60db |
| Fiber mode |
Single-mode/ Multi-mode, G.657A |
| Operating wavelength |
1310, 1550 |
| Test wavelength |
1310,1550 |
| Repeatability |
<=0.1 |
| Interchangeability |
<=0.2dB |
| Durability |
<=0.2dB |
| Fiber Length |
1m, 2m….. any length optional. |
| Length and tolerance |
10cm |
| Operating Temperature |
-40C ~ +85C |
| Storage Temperature |
-40C ~ +85C |
4. Cable specification:
| Item |
Data |
| fiber |
OS2,OM1,OM2,OM3,OM4 |
| Tension member |
Aramid Kevlar,Armoured Tube |
| Max. attenuation |
SM:≤0.34dB/km at 1310nm,≤0.20dB/km at 1550nm
MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm
|
| Tensile resistance(short term) |
500N(no breakage) |
| Crush resistance(short term/long term) |
1000N/100mm |
| inflaming retarding |
IEC 60332-3 |
| Temperature |
-40~+70°C |
| Uvioresistant |
PASS |
| Authentication |
Meet with RoHS &UL |
5. Nia Fiber care our life.
Nia Fiber always foucuses on reliable quality development. By complying with our qulity policy"Continue to pursue excellent quality, offer the best products and serices in order to realize customer needs and satisfaction", all along we strive for providing excellent products and service to meet and exceed our customer's need. Nia Fiber constantly works with modern quality management methods to ensure the whole service procedure is implemented flexibly and efficiently.
Nia Fiber has established complete quality,environment and occupational health and safety assurance system to design, produce and supply its range of fiber cable and FTTH products.
We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
