G652 G652D G657 G657A Fiber Optic Patch Cord Jumper Simplex 62.5/125 2.0mm 3.0mm

I'm Online Chat Now

G652 G652D G657 G657A Fiber Optic Patch Cord Jumper Simplex 62.5/125 2.0mm 3.0mm

China G652 G652D G657 G657A Fiber Optic Patch Cord Jumper Simplex 62.5/125 2.0mm 3.0mm supplier
G652 G652D G657 G657A Fiber Optic Patch Cord Jumper Simplex 62.5/125 2.0mm 3.0mm supplier G652 G652D G657 G657A Fiber Optic Patch Cord Jumper Simplex 62.5/125 2.0mm 3.0mm supplier G652 G652D G657 G657A Fiber Optic Patch Cord Jumper Simplex 62.5/125 2.0mm 3.0mm supplier G652 G652D G657 G657A Fiber Optic Patch Cord Jumper Simplex 62.5/125 2.0mm 3.0mm supplier G652 G652D G657 G657A Fiber Optic Patch Cord Jumper Simplex 62.5/125 2.0mm 3.0mm supplier

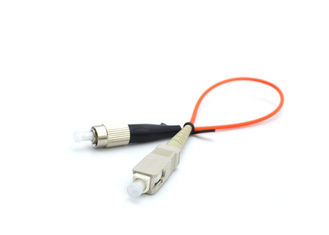

Large Image :  G652 G652D G657 G657A Fiber Optic Patch Cord Jumper Simplex 62.5/125 2.0mm 3.0mm

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: Rohs
Model Number: CFO-Distribution Box

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: 3days for samples; 7-15days for bulk order
Delivery Time: 1pc middle box, 6pcs in one carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal;
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Brand Name: CFO Model Number: Patch Cord
Cable Diameter: 0.9mm/2.0mm/3.0mm Mode: Single Mode/Mulitimode



Simplex MM 62.5/125 2.0mm 3.0mm LSZH PVC G652 G652D G657 G657A SC PC fiber optic patch cord jumper



Description:

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.



Features:

(1) Ceramic Ferrule;

(2) High return loss;

(3) Low insertion loss;

(4) Good repeatability and and exchangeability;

(5) Excellent Polished and 100% tested;

(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.



Applications:

Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission(FODT)

Test Equipment

CATV



Performance Index:

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652/G655/G657 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80


G652 G652D G657 G657A Fiber Optic Patch Cord Jumper Simplex 62.5/125 2.0mm 3.0mm



Our Service



Nia Fiber specializes in manufacturering of FTTH products and fiber optic cables. Nia Fiber provides connectivity solutions for some of the largest distributors and OEM accounts in the world. We provide both standard and custom solutions for our customer's specific requirements.


Total Quality is the guiding principle of Nia Fiber's business life. It requires each of us, individually and in teams, to understand, anticipate, and surpass the expectations of our customers. Total Quality demands continuous improvement in all our processes, products, and services. Our success depends on our ability to learn from experience, to embrace change, and to achieve the full involvement of all our employees. The company's expertise assures that each customer will receive the highest quality of products and service on each and every product. By purchasing Nia Fiber products, our customers can be assured that they are getting components that are fully warranted.


All products can be custom manufactured to fit customer requirements.If you need something special, Nia Fiber can design and manufacture a custom fiber optic cable or cable assembly to meet your requirements.



FAQ:



Q1: Are you a factory?

A: Yes, we are a factory, we have 6 workshops, patch cord, hardware, injection moulding, painting, die making work shop.



Q2: what's your products' quality control?

A: Our tenet is "Quality first, Prestige first".

1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.
3.The supporting of boss on quality control.

4.Our products have passed the CE & ROHS & ISO etc.



Q3: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our products.



Q4. Q: Could you offer the OEM service?

A: Yes, we can provide both OEM and ODM service, manufacture as per your request.



Q5. May I take a sample order
A: Yes, Professional manufacturer, 100% tested, samples are available.



Q6. What about the lead time?

A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.



Q7. What about the shippment and how long does it take to arrive?

A: Goods usually be shipped by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q8. Ordering guide as follow :

Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
