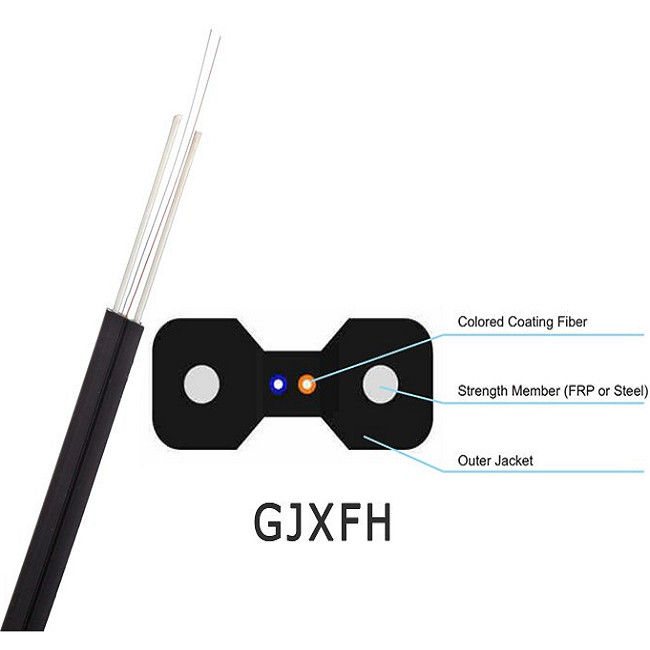

Indoor GJXFH Fig -8 Fiber Optic Drop Cable LSZH Jacket Simple Structure
FiberType: G.652, G.655 or G.657 single-mode fiber, A1a orA1b, OM3 or OM4 multi-mode fiber, or other types of fiber.Jacket Material: Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH),environmental halogen flame retardant polyolefin(ZRPO), orother contracted material.Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color.
Features
Good mechanical and environmental characteristics.
Rame retardant characteristics meet the requirements of relevant standards.
The mechanical characteristics meet the requirements of relevant standards.
Soft, flexible, easy to lay and splice, and with big capacity data transmission.
Meet various requirements of market and clients.
Applications
Used as access building cable.
Used in indoor cabling, especially used for FTTH
Optical Characteristics
| Fiber Type |
Attenuation |
Overfilled launch Bandwidth |
Effective Modal Bandwidth |
10GB/S Ethernet link length |
Min Bending Radius |
| Conditions |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
|
| Unit |
dB/km |
dB/km |
MHZ.km |
MHZ.km |
m |
mm |
| G652D |
0.36/0.22 |
|
|
|
|
16 |
| G657A1 |
0.36/0.22 |
|
|
|
|
10 |
| G657A2 |
0.36/0.22 |
|
|
|
|
7.5 |
| 50/125 |
|
3.0/1.0 |
≥500/500 |
|
|
30 |
| 62.2/125 |
|
3.0/1.0 |
≥200/500 |
|
|
30 |
| OM3 |
|
3.0/1.0 |
≥1500/500 |
≥2000 |
≥300 |
30 |
| OM4 |
|
3.0/1.0 |
≥3500/500 |
≥4700 |
≥550 |
30 |
| B1-OM3 |
|
3.0/1.0 |
≥1500/500 |
≥2000 |
≥300 |
7.5 |
| B1-OM4 |
|
3.0/1.0 |
≥3500/500 |
≥4700 |
≥550 |
7.5
|
Structure and Technical Specifications
| Fiber Count |
Cable Diameter
(mm)
|
Cable Weight
(kg/km)
|
Tensile Strength
(N/100mm)
|
Crush Resistance
(N/100mm)
|
| Short Term |
Long Term |
Short Term |
Long Term |
| 1-4 |
3.0*2.0 |
9.0 |
80/200 |
40/100 |
1000/2200 |
500/1000 |
Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
more information.
2.The cable core use the colored coating fiber of 250μm.
3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used
We produce and test cable compl with following standard
| Mechanical Performance |
| Max Tension Performance |
IEC 60794–1-2-E |
| Max. Operation Tension |
IEC 60794–1-2-E1 |
| Crush Test |
IEC 6079 –1-2-E3 |
| Impact Test |
IEC 60794–1-2-E4 |
| Repeated Bending |
IEC 60794–1-2-E6 |
| Torsion Test |
IEC 60794–1-2-E7 |
| Cable bend |
IEC 60794–1-2-E11A |
| Attenuation Coefficient |
ITU-T G.652 |
| Structural Test |
IEC-60793-1-20 |
| Environmental Performance |
| Temperature Cycling |
IEC 60794–1-2-F1 |
| Water Penetration |
IEC 60794–1–2-F5B |
| Filing Compound Flow |
IEC 60794-1-E14 |
