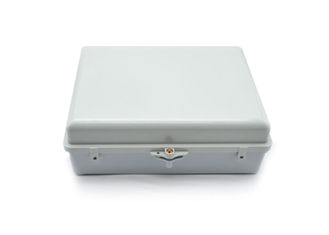

8 Core Outdoor Telephone Fiber Optic Distribution Box , Fiber Optic Enclosures Wall Mount
Features:
♦ Water-proof design with IP-65 Protection level
♦ Integrated with splice cassette and cable management tools
♦ Manage large quantities of fiber with a high packing density
♦ Easy to maintain and extend the capacity
♦ Wide Operation Temperature
♦ High Stability and Reliability
Application:
· FTTH, FTTB, FTTC
· Telecommunication Network
· Local Area Network
· CATV
Specification:
| Installation |
Wall Mounting or Pole Mounting |
| Protection Grade: |
IP 55 |
| Application Adapter |
SC/APC or SC/UPC |
| Application Cable |
Outdoor or indoor |
| MAX Core8 |
8 Core |
| Adapter and Pigtail |
With or Without is optional |
| Material |
ABS / PC / SMC |
| Dimensions |
420mm x 320mm x 130mm (W x H x D) |
| Weight |
2.5KG |
| Working Temperature |
-40℃~+60℃ |
| Working Humidity |
≤95%(+40℃) |
| Atmospheric Pressure |
70Kpa~106Kpa |
| Box door opening angle |
≥180° |
| Grounding voltage level |
≥3000V(DC)/10mA/1 min |
| Insulation Resistance |
2X104MΩ/500V |
FAQ:
Q1:How to 100% guarantee the insertion loss of the adapters is below 0.1dB/0.2dB?
Firstly the quality of the sleeve , secondly the accurate size of housing,
then 100% inspection in the production is must.
Q2:Why some times too tight or loose when assemble the adapters to the plate?
There is tolerance of the thickness of the plate especially baking finished plate, you must make sure the gap distance is just match the plate thickness.
Q3:How to keep the clearance of the endface of the connectors?
Do not take off the dust cap in transportation and stocking, make sure not to touch the end face with hand. If found dirty or scratch under telescope, please clean it with alcohol.
Q4:What’s the warranty of ADTEK fiber optic patch cord?
We can ensure lifetime warranty as our fiber optic cable is UL approved and all our
fiber optic patch cords are 100% testing passed
Q5: Can we print our logo on the fiber cable jacket?
Yes, of course. You can decide the print on the fiber cable jacket. MOQ is 1KM when
you want to add your logo. No MOQ as neutral printing.
Q6: What is the insertion loss for singlemode?
It is ≤0.2dB (Typical ≤0.1dB)
Q7: Can you do the 3D (interferometer) test?
Yes, we have the interferometer in our factory, we usually do the test as customers
request. Our 30 test passing rate is over 90%.
