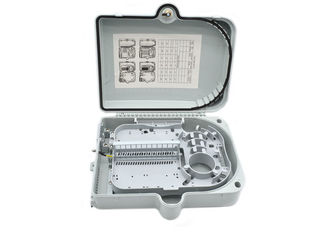

IP65 24 core Fiber Optic Distribution Box , fiber optic cable junction box
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
1). Total enclosed structure, be in nice shape.
2). Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP66.
3). Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4). Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
5). Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Application:
• Widely used in FTTH access network.
• Telecommunication Networks
• CATV Networks
• Data communications networks
• Local Area Networks(LANs)
Specification:
| Installation |
Wall Mounting or Pole Mounting |
| Protection Grade: |
IP 55 |
| Application Adapter |
SC/APC or SC/UPC |
| Application Cable |
Outdoor or indoor |
| MAX Core |
32 Core |
| Adapter and Pigtail |
With or Without is optional |
| Material |
ABS / PC / SMC |
| Dimensions |
420mm x 320mm x 130mm (W x H x D) |
| Weight |
2.5KG |
| Working Temperature |
-40℃~+60℃ |
| Working Humidity |
≤95%(+40℃) |
| Atmospheric Pressure |
70Kpa~106Kpa |
| Box door opening angle |
≥180° |
| Grounding voltage level |
≥3000V(DC)/10mA/1 min |
| Insulation Resistance |
2X104MΩ/500V |
