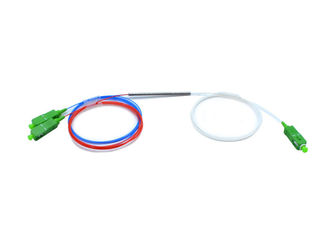

1310/1550nm 50/50 Ratio 1x2 FBT fiber optic coupler splitter SC / APC Connector
Nia Fiber can supply various FBT couplers including 1x2, 1x3,1x4,1x8,1x16,1x32 and customerized products.
1. Features:
Low Insertion
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Temperature: -40°C - 85°C
2. Applications:
Tight and fine structure
High reliability and directivity
Non-sensitive wavelength
Good high temperature low temperature performance
Convenient engineering applications
Fine polarization
Wide scope wavelength
3. Parameter:
| Item |
Specification |
| Fiber Type |
Single-mode |
Multi-mode |
| Splitting Ratio |
50/50 |
40/60 |
30/70 |
20/80 |
10/90 |
5/95 |
1/99 |
50/50 |
40/60 |
30/70 |
20/80 |
10/90 |
| Operating Wavelengh(nm) |
1310±40; 1550±40; 1310&1550±40; 1310&1490&1550±20 |
850±40; 1310±40; 850&1310±40 |
| Insertion Loss(dB) |
3.6/3.6 |
4.4/2.8 |
5.6/2.1 |
7.5/1.5 |
10.5/0.9 |
13.5/0.7 |
21.5/0.25 |
4.1/4.1 |
5.2/3.2 |
6.5/2.5 |
8.5/1.8 |
12/1.4 |
| PDL(dB) |
≤0.1 |
≤0.15 |
| Thermal Stability(dB) |
≤0.3 |
≤0.5 |
| Directivity(dB) |
≥55 |
≥40 |
| Operating Temperature |
-40~85ºC |
4. Nia Fiber Services:
- We provide professional offer. Provide detailed products test report and related specifications.
- We provide professional technology support to meet the requirements of customers.
- Within 12 hours of the corresponding customer inquiry,our commissioners will promptly get in touch with the customers.
5. After Services:
Shenzhen Nia Fiber comes with a one year limited warranty from the date of the purchase by the clients. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. we could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test,we will replace it for you.We are equipped with the good after service department and never escape our responsibility.
