Corning Core Optical PLC Splitter , Compact Design 1x8 PLC Splitter for FTTX Systems

I'm Online Chat Now

Corning Core Optical PLC Splitter , Compact Design 1x8 PLC Splitter for FTTX Systems

China Corning Core Optical PLC Splitter , Compact Design 1x8 PLC Splitter for FTTX Systems supplier
Corning Core Optical PLC Splitter , Compact Design 1x8 PLC Splitter for FTTX Systems supplier Corning Core Optical PLC Splitter , Compact Design 1x8 PLC Splitter for FTTX Systems supplier

Large Image :  Corning Core Optical PLC Splitter , Compact Design 1x8 PLC Splitter for FTTX Systems

Product Details:

Brand Name: Nia Fiber
1 64 ABS PLC Splitter

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: 1pc box
Delivery Time: 3-5days for sample, 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union;paypal
Supply Ability: 3000pcs/day
Contact Now
Detailed Product Description
Fiber Splitter Standards Compliant: Telcordia Gr-326-Core, Ice Optical Splitter Core: Corning Core
Fiber Optic Splitter Chip: South Korea Imports PLC Splitter In Tension: >=100N

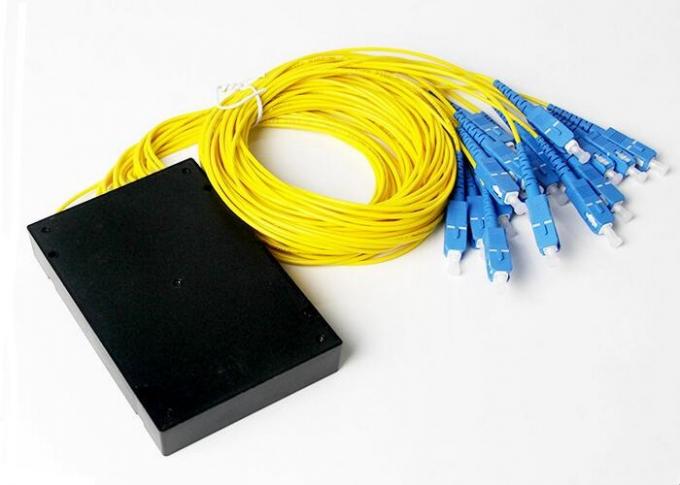

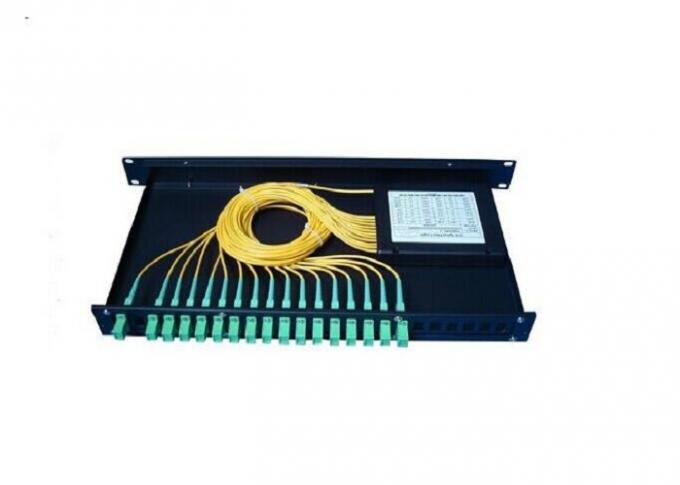

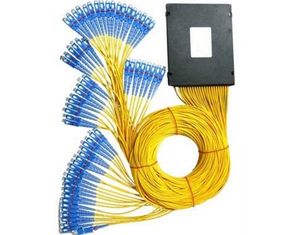

Optical Splitter Species: Miniature, Cartridge, Inserts, Rack, Steel Tube Optical Splitter Optional Connector: SC FC LC ST MU D4 DIN E2000

Corning Core Optical PLC Splitter , Compact Design 1x8 PLC Splitter for FTTX Systems





1. Features:



Low Insertion loss



Low PDL



Compact Design



Good channel-to-channel uniformity



Wide Operating Wavelength: From 1260nm to 1650nm



Wide Operating Temperature: From -40°C to 85°C



High Reliability and Stability





2. Applications:



FTTX Systems



PON Networks



CATV Links



Optical Signal Distribution





3. Compliance:



Telcordia GR-1209-CORE



Telcordia GR-1221-CORE







4. Specifications:



1×N PLC Splitter



Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Return Loss (dB)(P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5

Temperature Stability

(-40~85 °C)(dB)

0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Device Dimension (mm) 40×4×4 40×4×4 40×4×4 50×4×4 50×7×4 60×12×4 N/A
Module Dimension (mm) 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18 140×115×18
Mini-Module Dimension (mm) 50×7×4 50×7×4 50×7×4 60×12×4 80×20×6 100×40×6 N/A



Corning Core Optical PLC Splitter , Compact Design 1x8 PLC Splitter for FTTX SystemsCorning Core Optical PLC Splitter , Compact Design 1x8 PLC Splitter for FTTX Systems
