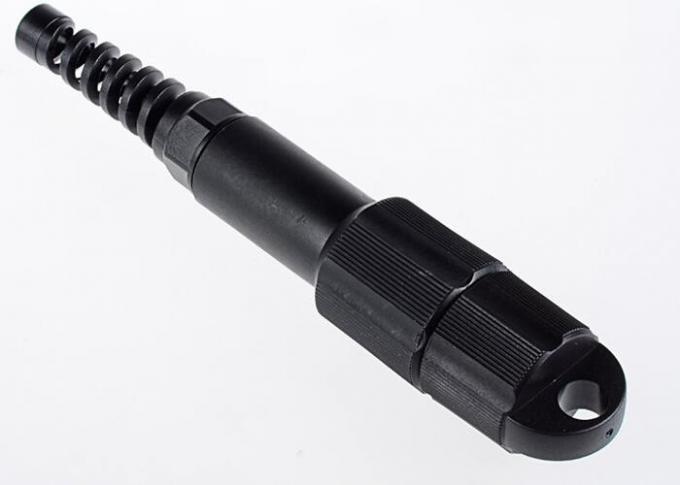

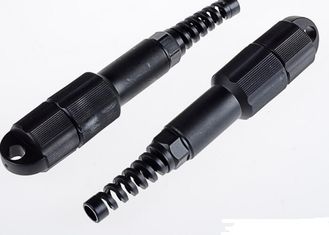

PDLC Connector Optical Fiber Patch Cord IP67 Outdoor With Nickel Plated Brass Housing
1. Features:
1. Standard PDLC connector, well connected with standard LC adaptor
2. Available Single mode and Multimode
3. IP68 protection, salt-mist proof, humidity proof, dust proof
4. Aluminum housing, compact design
5. Broad temperature range and wide range of indoor and outdoor cables
6. Easy Operation, reliable and cost-effective installation
2. Specification:
|
Technology
|
|
Full ceramic ferrule and sleeve
|
|
Housing material
|
|
Nickel plated brass
|
|
Installation torque force
|
min.1Nm
|
max.2Nm
|
|
Operating temperature
|
IEC 61300 – 2 – 22
|
-40℃ up to +85℃
|
|
Mating durability
|
|
1000 cycle
|
|
Ingress protection(mate)
|
IEC60529
|
Ip 68
|
|
Salt mist
|
IEC61300-2-26
|
30 days passed
|
|
Vibration
|
IEC61300-2-1
|
Pass 10-500Hz/10g
|
|
Shock
|
IEC61300-2-9
|
Pass 100g
|
