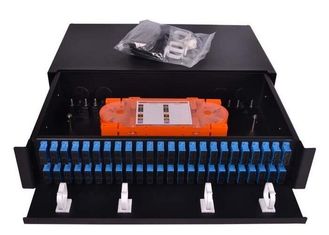

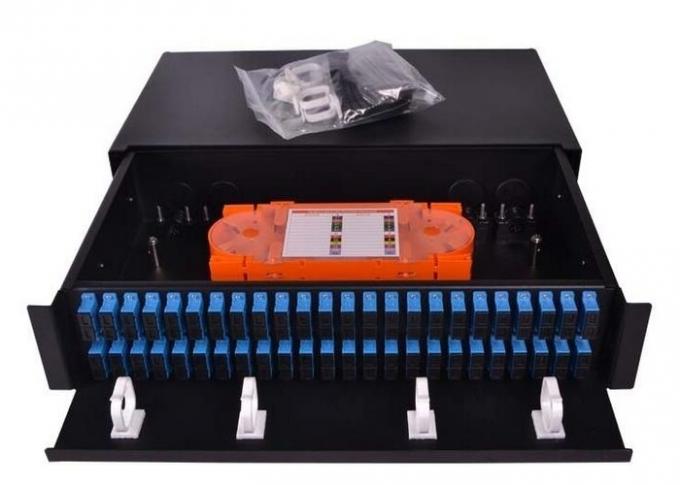

Slim 1U Fiber Optic Patch Panel 96 Cores Sliding Open SC Type For LAN / WAN
We have own factory and design team. We accept ODM order and OEM order. We can design a suitable fiber distribution box for your project. your inquiry is welcomed.
1. ODF Features:
1. 1.5mm steel sheet for strong housing
2. Slim 1 unit mounting height
3. Ball bearing slid rails with positive stop
4. Sliding design is easy to work for patching the connectors
5. Hinged front panel is easy to be truned over & be fixed by snap-in locker
6. Front-mounted cable saddles for jumper management
7. Can includes adapter panels for up to 72 144 SC terninations
8. High density splice tray contains 24 fiber maximum in one tray
9. Clear plastic cover to protect the fibers
10. 4 Fiber saddles built-in for 900um tight buffered fiber winding& storing
11. Capable of storing up to 3 meters of 900um tight buffered fiber per adapter
12. Sanp-in locker desing, easy to change adapter panels for various connector patching
13. Removalbe rubber grommet allow for pre-terminated fiber trunk install. protects cable, and minimisze dust build-up
14. Accessory kit consists of cable ties, mounting ear screws, and spiral wrap tube
2. Application:
1. Telecommunications subscriber loop
2. Fiber to the home (FTTH)
3. LAN/WAN
4. CATV
| Model |
Fiber Quantity |
Height |
Dimension(cm) |
Weight(Kg) |
| ODF-RS12 |
12 |
1U |
45x 32x4.45 |
4 |
| ODF-RS24 |
24 |
1U |
45x 32x4.45 |
4.2 |
| ODF-RS48 |
48 |
2U |
48x32x8.9 |
4.31 |
| ODF-RS96 |
96 |
2.5U |
48x32x11 |
5.05 |
