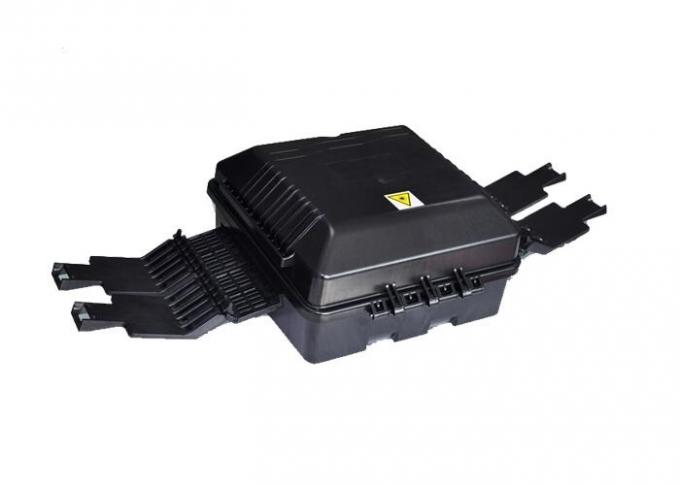

Low Return Loss Fiber Optic Distribution Box FTTH Outdoor Waterproof Terminal Box
fiber distribution box is Optical Network client FTTH wiring equipment, mainly for light transmission terminal into the heat sealing, spectral, wiring the output, and other functions, can be effective for terminating cable, protection and management, for the necessary equipment in the process of optical network transmission.
1. Features:
1. The product is made of PC and glass fiber hybrid after granulation after high temperature injection molding, plastic industry
"alloy steel" title, product appearance smooth lines, is to prevent water, prevent fire, to prevent the impact of three protective function, reach the grade IP55 protection ability.
2. Matching line equipment products for a variety of purposes, both can be used for optical fiber distribution box use can also be used as optical fiber branching box use, convenient and flexible to operate.
3. The clasp design, adopt unique lock box opening and closing flexible, protective performance is good.
4. The frame structure, to the port configuration and distribution of high density optical fiber devices.
5. Use a variety of installation accessories connection, can be fixed on the carrier of plane and surface.

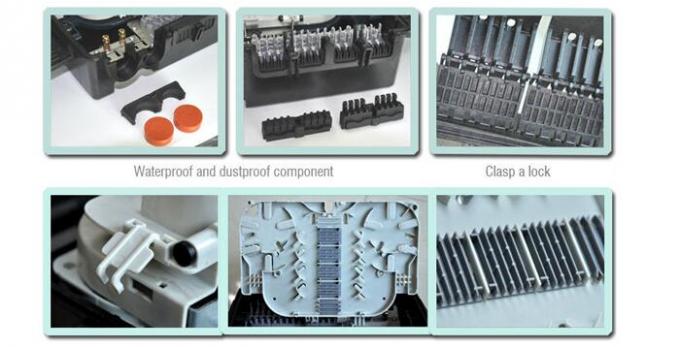

6. Into the outlet using silica gel protective sleeve, completely avoid water and dust into the interior.
7. A variety of use, the user can configure their circuit part, realize other functions.
8. sets of fiber optic cable splicing, disk storage, wiring three functions into one.
9. Welding lifted the lid can be opened, the installed directly above, also reveal a box outside operation, simple to use.
10. The loading and unloading type adapter plate with dip Angle, can avoid activities generated when the connector plug plug the light damage to the human eye, and make the fiber has a large bending radius.
11. Suitable for ordinary optical cable, can also be applied to the welding ribbon cable.
12. With the advanced device, fiber optic cabling management ensures that the wiring of the fiber and the fiber core installation, construction and maintenance is convenient.
2. Technical Parameters:
| Parameter |
Specification |
| Working temperature |
- 40 ° C + 80 ° C; |
| relative humidity |
93% or less (at + 40 ° C) |
| atmospheric pressure |
62 kpa to 101 kpa (approximate 0 ~ 5000 meters above sea level) |
| insertion loss |
0.35 dB or less |
| Return loss |
50 dB or higher |
| Plug the durable performance |
> 1000 times |
| Insulation resistance |
1000 m or more Ω / 500 v (DC) |
| Pressure |
> 3000 v (DC) / 1 min not breakdown, no arcing |
| Dimension |
270 x272x145mm |
| weight |
2.25 KG |
