Product Details:
Payment & Shipping Terms:
|
| Model Number: | OM4 Fiber Optic Patch Cord | Jacket Dia: | 3.0mm |
|---|---|---|---|
| Polishing: | PC/UPC | Insertion Loss: | <=0.3dB |
| Return Loss: | >50dB | Color: | Purple |

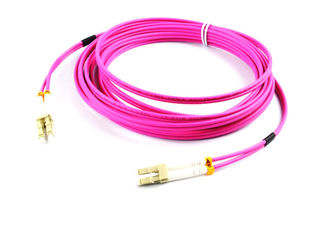

OM4 Fiber Optic Patch Cord 50 / 125 LSZH Jacket 3.0mm Purple For Test Equipment

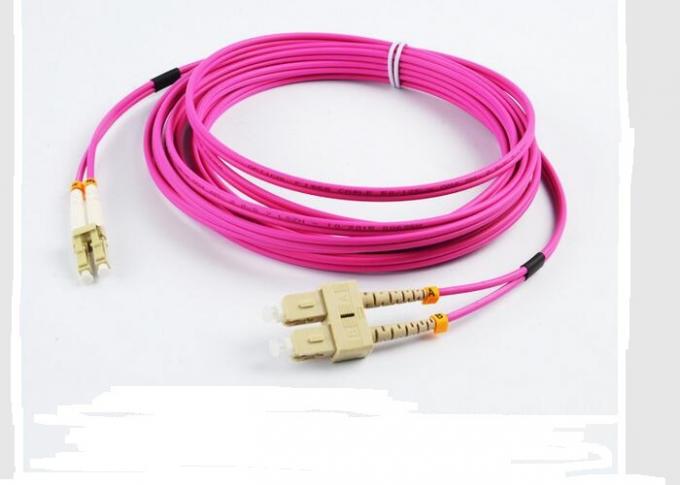

SC-SC/ST-ST/ FC-FC/ST-LC Multi mode Dx optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment.
Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling"
1. Specification:
1. Insertion loss:(Single-mode)PC≤0.3dB,UPC≤0.2dB APC≤0.2dB (Multi- mode):PC≤0.2dB
2. Return loss:PC≥45dB,UPC≥50dB APC≥65dB
3. Durability(1000times):≤0.2dB
4. Temperature range:-40 --- +80
2. Performance:
1. Compliance with the standard of IEC and YD-T826/1996
2. High return loss and Low insertion loss
3. Good reliability& stability
4. Three types:PC/UPC/APC
5. Simplex and Duplex cable
6. Cable diameter:Φ0.9/Φ2/Φ3
3. Application:
1. Telecommunication Networks
2. Test Equipment
3. Local Area Network
4. CATV
5. Nia Fiber Service:
Before Sale Service:
We provide professional offer. Provide detailed products test report and related specifications.
We provide professional technology support to meet the requirements of customers.
Within 12 hours of the corresponding customer inquiry,our commissioners will promptly get in touch with the customers.
After Sale Service:
Nia Fiber comes with a one year limited warranty from the date of the purchase by the clients. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. we could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test,we will replace it for you.We are equipped with the good after service department and never escape our responsibility.
