FTTH Double-fly Indoor Drop Cable FRP/KFRP Strength Member Optical Fiber Cable

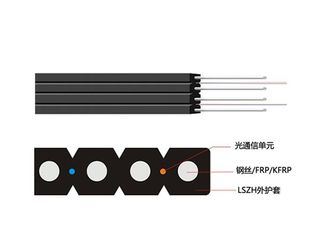

FTTH double-fly indoor cable, in the center there are two optical fiber units, Two parallel FRP/KFRP or steel wire are placed at the two sides of the optical fiber units separately. Then the cable is completed with a black or color LSZH sheath.
1. Features:
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2. Two parallel FRP/KFRP or steel wire strength members ensure good performance of crush resistance to protect the fiber;
3. Simple structure, light weight and high practicability;
4. special tube filling compound ensure a critical protection of fiber.
5.Single steel wire or stranded steel wires together with the strength member , ensure good tensile properties of the fiber cable;
6. Novel flute design, easily strip and splice, simplify the installation and maintenance;
7. Low smoke, zero halogen and flame retardant sheath.
8. Unique double-fly design make the installation more simple, time-saving and cut down cost.
2. Optical Charateristics
| |
G.652 |
G.655 |
G657A1 |
G.657A2 |
Attenuation
(+20℃) |
@850nm |
|
|
|
|
| @1300nm |
|
|
|
|
| @1310nm |
≤0.45/km |
≤0.40/km |
≤0.40/km |
≤0.40/km |
| @1550nm |
≤0.30/km |
≤0.30/km |
≤0.30/km |
≤0.30/km |
| Cable Cut-off Wavelength |
|
≤1260nm |
≤1260nm |
≤1260nm |
≤1260nm |
3. Structure Parameter
| Fiber count |
Cable diameter mm |
Cable weight Kg/km |
Tensile strength
long/Short term
N |
Crush resistant
long/Short term N/100m |
Bending radius
Static/dynamic mm |
| 2*1 |
(2.0±0.2)*(6.0±0.2) |
20 |
150/300 |
300/1000 |
15D/30D |
| 2*2 |
(2.0±0.2)*(6.0±0.2) |
20 |
150/300 |
300/1000 |
15D/30D |
| 2*4 |
(2.0±0.2)*(6.0±0.2) |
20 |
150/300 |
300/1000 |
15D/30D |
Storage/Operating Temperature : -20℃ to + 60℃
