Duct Using Bow-type Drop Cable GJYXFHS with PSP and PE Jacket

I'm Online Chat Now

Duct Using Bow-type Drop Cable GJYXFHS with PSP and PE Jacket

China Duct Using Bow-type Drop Cable GJYXFHS with PSP and PE Jacket supplier
Duct Using Bow-type Drop Cable GJYXFHS with PSP and PE Jacket supplier Duct Using Bow-type Drop Cable GJYXFHS with PSP and PE Jacket supplier

Large Image :  Duct Using Bow-type Drop Cable GJYXFHS with PSP and PE Jacket

Product Details:

ISO9001
Brand Name: Nia Fiber
GJYXFHS

Payment & Shipping Terms:

Minimum Order Quantity: 1Km
Packaging Details: carton box, wooden reel,2km/drum
Delivery Time: 3-5days
Payment Terms: D/P, L/C, D/A, T/T, Western Union;paypal
Supply Ability: 10Km/day
Contact Now
Detailed Product Description
Model Number: GJYXFHS Fiber Type Range: G657A1;G657A2;OM3;OM4
Insulation Material: PE Cable Type: GJYXFHS-1Xn,GJYXFHS-2Xn
Fiber Count: 1-2 Application: Access Network, Fiber To The Home

Duct Using Bow-type Drop Cable GJYXFHS with PSP and PE Jacket



1. Features:

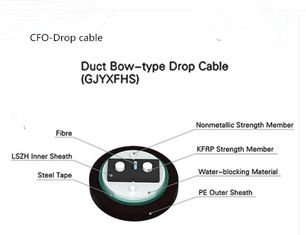

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Arfter an aluminum polyethylene laminate (APL) moisture barrier is applied, the cable is completed with a black or color LSZH sheath. Finally, the cable is completed with PE sheath.



The typical GJYXFHA duct bow-type drop cable is composed of one GJXFH cable in the middle and two strength members on both sides, longitudinal wrapped by aluminum tale and HDPE sheath.

Duct Using Bow-type Drop Cable GJYXFHS with PSP and PE Jacket



Technical Advantage:



Support the internet, CATV and telephone;
High bandwidth, easily reach 100M;
Flexible network construction, reduce the cost of installation and maintenance, convenient for network management;
Usable equipment ports, easy to increase the users and expand accommodates gradually;
Support more network increment service in future.



bow-type drop series cable consists of optical fiber unit, strength member and outer sheath, in which the strength members are placed at the two sides of the optical fiber unit and all of them are finally covered with the outer sheath.
a).The optical fiber unit shall be fiber, tight buffer fiber or fiber ribbon. One or above fiber count is available upon request.
b).The strength member shall be metallic or non-metallic. They are applied at the two sides of the optical fibers respectively, and another one or more might be added longitudinally,
c).The sheath is made of black or color LSZH material, which complies with standard IEC332-1.



Duct Using Bow-type Drop Cable GJYXFHS with PSP and PE Jacket





Nia Fiber always foucuses on reliable quality development. By complying with our qulity policy"Continue to pursue excellent quality, offer the best products and serices in order to realize customer needs and satisfaction", all along we strive for providing excellent products and service to meet and exceed our customer's need. Nia Fiber constantly works with modern quality management methods to ensure the whole service procedure is implemented flexibly and efficiently.



Nia Fiber has established complete quality,environment and occupational health and safety assurance system to design, produce and supply its range of fiber cable and FTTH products.



.
