264 Core Dome Fiber Optic Splitter Box 498 * 305mm Vertical PC Plastic For FTTH
This FTTH PC dome fiber optic ftth aerial dome joint closure can be placed in aerial, underground, wall-mounting, hand hole mounting and duct-mounting applications.
The strong housing and main components provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsioning and impacting. It ensures long term reliability and usage under ambient temperature from -40℃ to +65℃

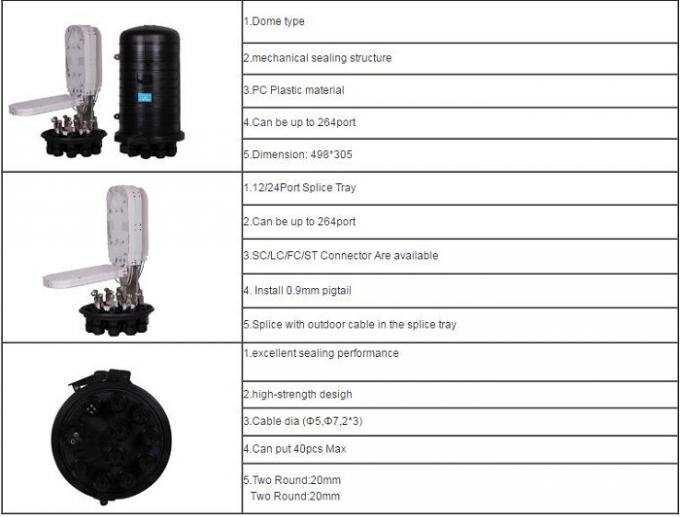

1. Feature:
Dome, vertical type
8 pcs round ports and 1 pc oval port
24~144 cores total capacity, max 6 trays
Elastic integrated seal ensure tightening fit
Housing provide fire resistant, waterproof, and quakeproof for splices while handling
Operating Temperature: -40~+65 ℃
2. Specification:
3. Application:
1.Suitable for bunchy & ribbon fibers
2.Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
3.It’s especially applicable to FTTH optical fiber distribution
4. Order Infoamation:
| Core capacity(Max.) |
Optional Assemble |

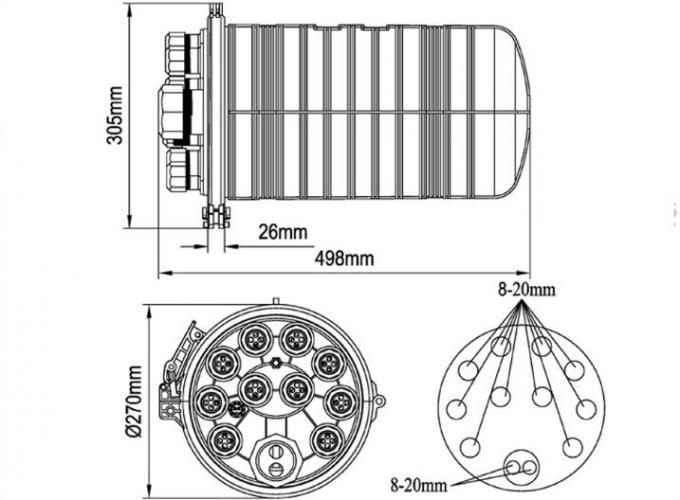

Outside
Dimension (L*W*H)MM
|
Cable Diameter
(mm)
|
Straight- through |
|
Bunchy
(Single)
|
Bunchy
(Double)
|
Ribbon |
Adapter |
Splitter |
| 132 |
264 |
/ |
Y |
Y |
498*305 |
1*round:2*20mm 10*round:20mm |
Y |
5. Nia Fiber care our life:
1.Any question will be replied within 24 hours.
2.Professinal manufacture,Welcom to vist our company.
3.100% test before shipping.
4.OEM/ODM is avaliable(As required print logo and customized color).
5.Fast delivery time(2 days for samples,order 3~7 days for bulk production)
