96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers

I'm Online Chat Now

96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers

China 96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers supplier
96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers supplier 96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers supplier 96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers supplier 96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers supplier

Large Image :  96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers

Product Details:

Brand Name: Nia Fiber
Splice Closure

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: box
Delivery Time: 3-5days
Payment Terms: L/C, T/T, Western Union;paypal
Supply Ability: 2500pcs/day
Contact Now
Detailed Product Description
Dimension: 425*232mm Capactiy: 96F
Model Number: 96Core Fiber Optical Splice Closure Color: Black
Use Type: Aerial Maximum Capacity: 288 Cores

96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers



2 Series for Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation of main optical cables and drop cables with different diameters.



1. 96Core Fiber Optical Splice Closure Features:



1. The closure adopts mechanical sealing structure. There is one oval shaped cable port entrances in base. The big entrance is used for the sealing of uncut straight-through fiber cable, the small ports are used for branch fiber cable and drop cable.



2. Adopt engineering PC plastic with high-strength to make the closure has longer life time and excellent sealing performance.

It can be installed one 1:16 blockless PLC splitter in max. One 1:16 or two 1:8 bare PLC splitter.



3. There are different drop cable elements to be chosen (Φ5,Φ7,2*3). Max. 40 pcs drop cable input/output (special type can be customized).



4. The patented sealing structure keep good sealing performance after re-entry and re-using.



5.It could save the installation time and improve work efficiently.





2. 96Core Fiber Optical Splice Closure Detaiil shows:

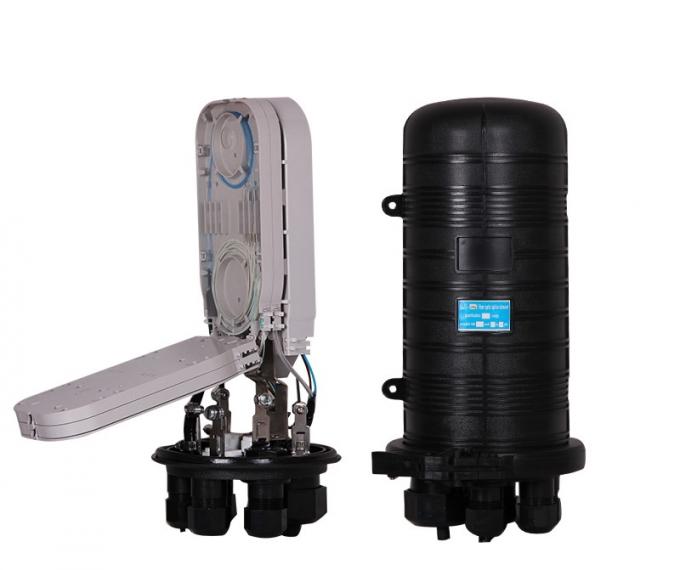

96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers 1.Dome type
2.mechanical sealing structure
3.PC Plastic material
4.Can be up to 96port
5.Dimension: 425*232

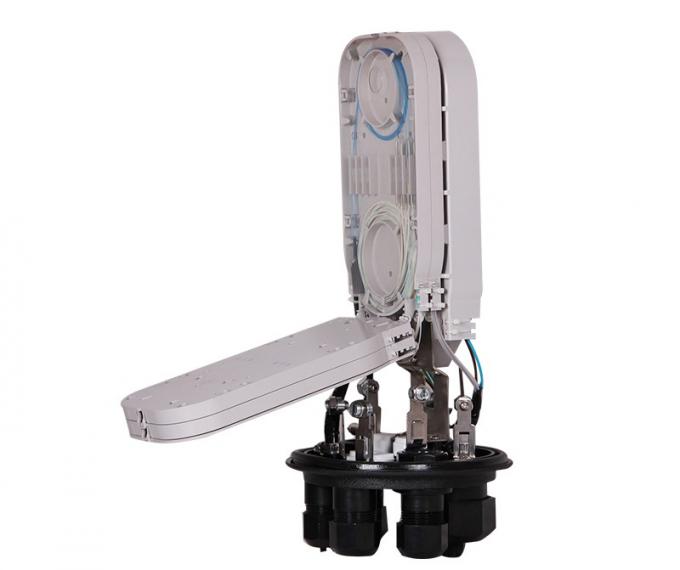

96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers 1.12/24Port Splice Tray
2.Can be up to 96port
3.SC/LC/FC/ST Connector Are available
4. Install 0.9mm pigtail
5.Splice with outdoor cable in the splice tray

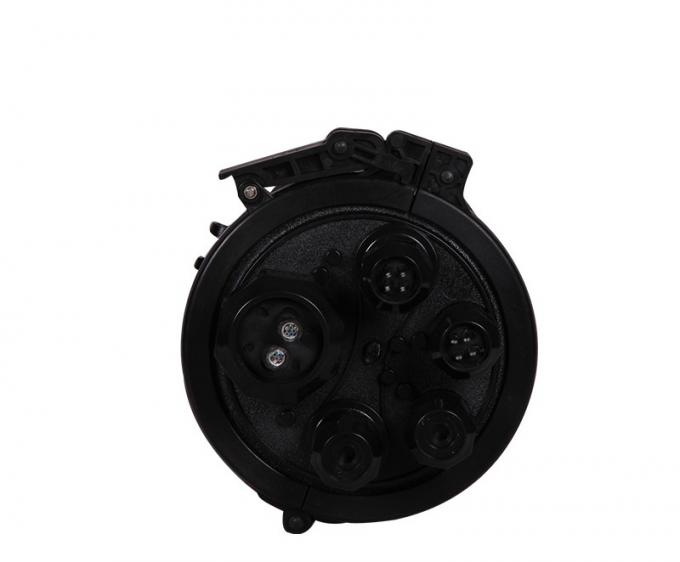

96 Core Fiber Optical Splice Closure Mechanical Sealing Structure Black For Ribbon Fibers

1.excellent sealing performance



2.high-strength desigh
3.Cable dia (Φ5,Φ7,2*3)
4.Can put 16pcs Max

5.1*round:2*20mm

4*round:20mm



The application of the joint closure



1. Suitable for bunchy & ribbon fibers
2. Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
3. It’s especially applicable to FTTH optical fiber distribution



3. Order Infoamation:



Core capacity(Max.) Optional Assemble

Outside

Dimension (L*W*H)MM

Cable Diameter

(mm)

Straight- through

Bunchy

(Single)

Bunchy

(Double)

Ribbon Adapter Splitter
48 96 / Y Y 425*232 1*round:2*20mm 4*round:20mm Y
