|Fiber Capacity:||Up To 288 Fibers||Capacity:||48 Core Patch Panel|
|Return Loss:||>50 DB||Body:||Metal Cold Rolled Steel|

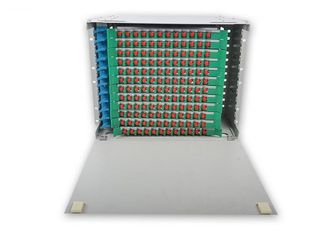

288 Core Fiber Optic Distribution Unit , Multimode 144 Port Fiber Patch Panel

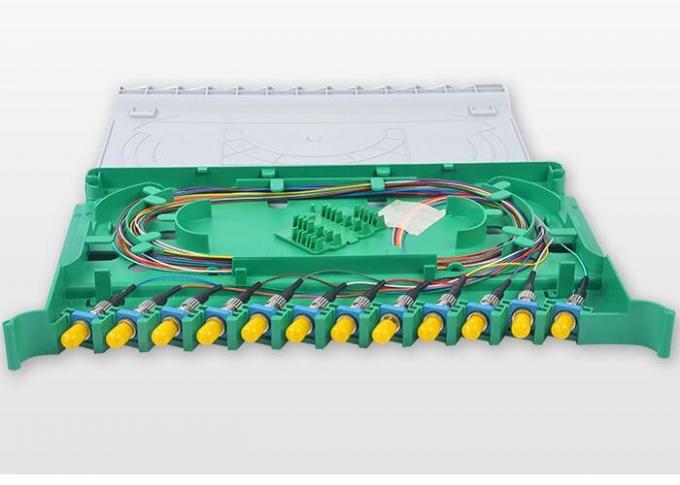

The PP1004 is a 4 Rack Unit(RU) 12 termination panels, 19 - or 23-inch rack mount fiber distribution unit designed to support patching and splicing in one unit. The unit has a slide out master panel that allows for accessing terminations or for splicing if used as patch/patch splice housing.

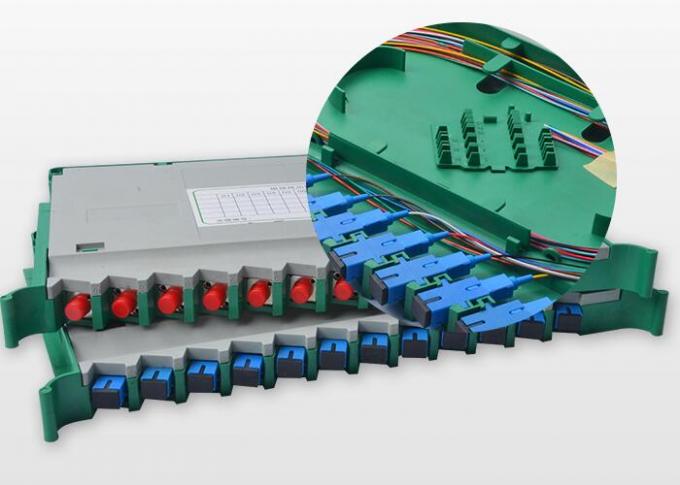

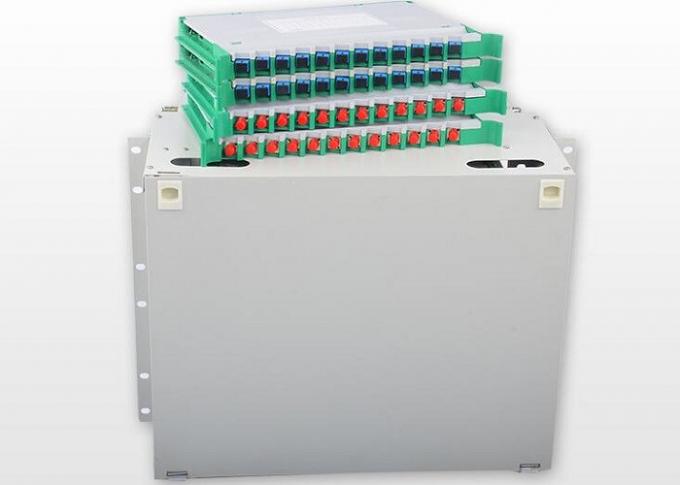

The PP1004 have a Front & Rear both direction slide tray, the locking spring pin at rear side
Compliance with the Standard of YD/T925-1997
Excellent Armor Plate,Good-looking Figure
Design for large splicing tray
One to four entry are available
Metal assemblies of optic cable terminating box and optic cable metal strength chip
Large capacity,Core can reach 12-144cores
Good protection of pigtails
LAN & WAN

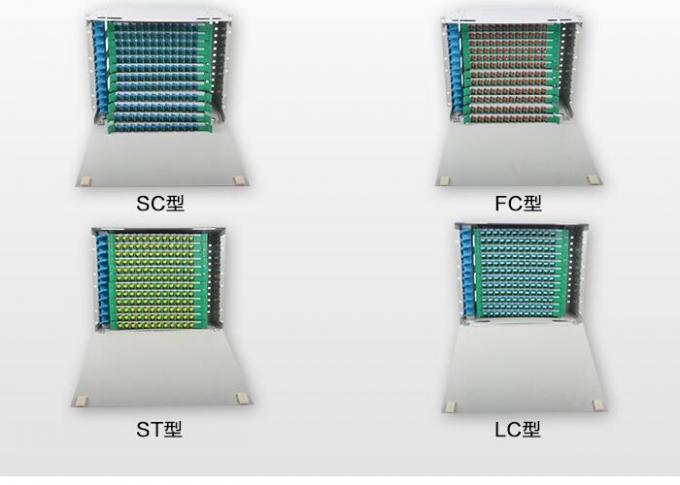

3. Product Show:
Preparation before installation
A. Check the structure and type of fiber cables before installation; different fiber cables could not be spliced together;
B. Seal well the connective components to reduce additional loss to fibers caused by dampness; don't apply any pressure on the connective components;
C. Keep a dry and dustless working environment; don't apply any external force to the cables; don't bend or entwine cables;
D. Appropriate tools should be used for splice of cables according to the local standards during the whole
The installation procedure of the box
A. Open the front cover of the box or the top (if necessary), take down the fiber splice tray; let in the fibers
from the fiber entry and fix them on the box; the devices for fixation are as follows: the adjustable collet,stainless fiber cable ring & nylon tie;
B. The fixation of steel core (if necessary): thread the steel core through the fixed device (optional) and screw down the bolt;
C. Leave about 500mm-800mm long spare fibers from the peeled point of fiber cable to the entrance of the splice tray, cover it with plastic protective tube, fix it with plastic tie at the T type holes; splice fibers as
D. Store the spare fibers and pigtails, plug the adapters in the slots on the tray; or first plug in the adapters and then store the spare fibers, please pay attention to the direction of coiling fibers
E. Cover the splice tray, push in the splice tray or fix it with the slot at the edge of the box;
F. Install the box inside 19" standard mounting equipment.
G. Connect the patch cord as usual.
4. Fiber Optic Patch Panel Specification:
Intensity≤15KV(DC)/1minno spark-over and no flying arc
Fiber bending radium guaranteed more than 40mm:≥40mm
Application: It is applicable for straight-through connection and diverged
connection in aerial layout , duct and direct buried. It can protect fiber
|Working temperature||-40℃ +70℃|
|Working atmospheric pressure||70-106Kpa|
|Under the general air presure, 500VDC, insulation resistance>1000MΩ|
|The high voltage protection can understake 3000VDC, no spark-through and flashover within 1 minutes.|
|Optical performance data|
|Connectors loss( including insertion, changeability and durability||<=0.3dB|
|Additional loss in changeability||<=0.2dB|
|Additional loss in durability||<=0.1dB|
|Return loss||FC/PC>=40dB, FC/UPC>=50dB,FC/APC>=60dB|
|Insertion Loss (dB)||Fiber Type||/||Hi 780/ Flex 1060/
SMF-28e/ SMF-28e XB
|10/90||9.70---10.7||≤0.60||9.70-11.2||≤0.60||Excess Loss||dB||Typ.:<0.1 Max.:<0.2|
|20/80||6.70---7.60||≤1.15||6.60---7.80||≤1.15||Pigtail Dia.||mm||0.25 /0.9 / 2 / 3|
|40/60||3.95---4.30||≤2.50||3.70---4.70||≤2.70||Operating Tem.||ºC||-10~ +70|
|50/50||2.85---3.30||2.80---3.40||Storage Tem.||ºC||-40~ +85|
