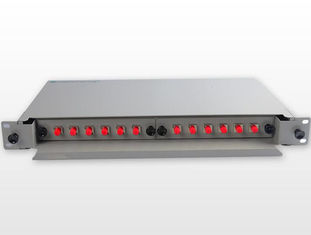

Rack Mount Fiber Patch Panel 12 Port 19′′ 1U FC Adapter Singlemode Metal Alloy
Rack Mount ST 12 port, 1U Fiber Optic Terminal box/Fiber Optic Patch Panel
1. Box body is made of high quality cold-rolled steel material, and the surface of the inferior smooth electrostatic praying processing technology
2. Unique 1 ~ 2 into cable mouth and 1~48 core out fine mouth design
3. Box stack turn the page type structure fusion fiber disc and independent insulated grounding device
Standard configurations:
ODF, 1U Patch Panel with 6pcs duplex SC adapters or quad LC adapters
ODF, 1U Patch Panel with 6pcs simplex SC adapters or duplex LC adapters
ODF, 1U Patch Panel with 8pcs simplex SC adapters or duplex LC adapters
ODF, 1U Patch Panel with 12pcs duplex SC adapters or quad LC adapters
ODF, 1U Patch Panel with 12pcs simplex ST adapters or simplex FC adapters
ODF, 1U Patch Panel with 24pcs simplex ST adapters or simplex FC adapters
1. Features:
The shell is high intensified & insulated material, thus having excellent mechanic performance and it is solid and durable
Fiber in put:4
Adapters output:24
Strength core and shell was Insulation,add with grounding lead
Can be installed against wall
Full accessories for convenient operations
2. Application:
Telecommunication
CATV
LAN & WAN
Network
Broadband
3. Product Show:
4. Order information:
| Name |
Type |
Dimension H×W×D(mm) |
termination/splice |
Remark |
| 12 ports SC patch panel |
CFO-XM-E1SC |
1U×482×310 |
12/12 |
with 12 pcs of SC adapters
1 pcs of splice tray(12-core) |
| 12 ports FC patch panel |
CFO-XM-E1FC |
1U×482×310 |
12/12 |
with 12 pcs of FC adapters
1 pcs of splice tray(12-core) |
| 12 ports ST patch panel |
CFO-XM-E1ST |
1U×482×310 |
12/12 |
with 12 pcs of ST adapters
1 pcs of splice tray(12-core) |
| 24 ports duplex LC patch panel |
CFO-XM-E1LCD |
1U×482×310 |
24/24 |
with 12 pcs of duplex LC adapters
1 pcs of splice tray(24-core) |
| 24 ports SC patch panel |
CFO-XM-E2SC |
1U×482×310 |
24/24 |
with 24 pcs of SC adapters
2 pcs of splice tray(12-core) |
| 24 ports FC patch panel |
CFO-XM-E2FC |
1U×482×310 |
24/24 |
with 24 pcs of FC adapters
2 pcs of splice tray(12-core) |
| 24 ports ST patch panel |
CFO-XM-E2ST |
1U×482×310 |
24/24 |
with 24 pcs of ST adapters
2 pcs of splice tray(12-core) |
| 48 ports duplex LC patch panel |
CFO-XM-E2LCD |
1U×482×310 |
48/48 |
with 24 pcs of duplex LC adapters
2 pcs of splice tray(24-core) |
| 96 ports quad LC patch panel |
CFO-XM-E2LCQ |
1U×482×310 |
96/96 |
with 24 pcs of Quad LC adapters
4 pcs of splice tray(24-core) |
| 36 ports SC patch panel |
CFO-XM-E3SC |
2U×482×310 |
36/36 |
with 36 pcs of SC adapters
3 pcs of splice tray(12-core) |
| 36 ports FC patch panel |
CFO-XM-E3FC |
2U×482×310 |
36/36 |
with 36 pcs of FC adapters
3 pcs of splice tray(12-core) |
| 36 ports ST patch panel |
CFO-XM-E3ST |
2U×482×310 |
36/36 |
with 36 pcs of ST adapters
3 pcs of splice tray(12-core) |
| 72 ports duplex LC patch panel |
CFO-XM-E3LCD |
2U×482×310 |
72/72 |
with 36 pcs of duplex LC adapters
3 pcs of splice tray(24-core) |
| 48 ports SC patch panel |
CFO-XM-E4SC |
2U×482×310 |
48/48 |
with 48 pcs of SC adapters
4 pcs of splice tray(12-core) |
| 48 ports FC patch panel |
CFO-XM-E4FC |
2U×482×310 |
48/48 |
with 48 pcs of FC adapters
4 pcs of splice tray(12-core) |
| 48 ports ST patch panel |
CFO-XM-E4ST |
2U×482×310 |
48/48 |
with 48 pcs of ST adapters
4 pcs of splice tray(12-core) |
| 96 ports duplex LC patch panel |
CFO-XM-E4LCD |
2U×482×310 |
96/96 |
with 48 pcs of duplex LC adapters
4 pcs of splice tray(24-core) |
| 192 ports quad LC patch panel |
CFO-XM-E4LCQ |
2U×482×310 |
192/192 |
with 48 pcs of Quad LC adapters
8 pcs of splice tray(24-core) |
| 72 ports SC patch panel |
CFO-XM-E5SC |
3U×482×310 |
72/72 |
with 72 pcs of SC adapters
3 pcs of splice tray(24-core) |
| 72 ports FC patch panel |
CFO-XM-E5FC |
3U×482×310 |
72/72 |
with 72 pcs of FC adapters
3 pcs of splice tray(24-core) |
| 72 ports ST patch panel |
CFO-XM-E5ST |
3U×482×310 |
72/72 |
with 72 pcs of ST adapters
3 pcs of splice tray(24-core) |
| 144 ports duplex LC patch panel |
CFO-XM-E5LCD |
3U×482×310 |
144/144 |
with 72 pcs of duplex LC adapters
6 pcs of splice tray(24-core) |
| 288 ports quad LC patch panel |
CFO-XM-E5LCQ |
3U×482×310 |
288/288 |
with 72 pcs of Quad LC adapters
12 pcs of splice tray(24-core) |
| 96 ports SC patch panel |
CFO-XM-E6SC |
4U×482×310 |
96/96 |
with 96 pcs of SC adapters
4 pcs of splice tray(24-core) |
| 96 ports FC patch panel |
CFO-XM-E6FC |
4U×482×310 |
96/96 |
with 96 pcs of FC adapters
4 pcs of splice tray(24-core) |
| 96 ports ST patch panel |
CFO-XM-E6ST |
4U×482×310 |
96/96 |
with 96 pcs of ST adapters
4 pcs of splice tray(24-core) |
| 192 ports duplex LC patch panel |
CFO-XM-E6LCD |
4U×482×310 |
192/192 |
with 96 pcs of duplex LC adapters
8 pcs of splice tray(24-core) |
| 384 ports quad LC patch panel |
CFO-XM-E6LCQ |
4U×482×310 |
386/386 |
with 24 pcs of Quad LC adapters
16 pcs of splice tray(24-core) |
5. Fiber Optic Patch Panel Specification:
Environment temperature:-25ºC~+45ºC
Relative humidity:≤85%(30ºC)
Atmosphere pressure:70~106KPa
Insulated Resistance:≥2×10MΩ/500V(DC)
Intensity≤15KV(DC)/1minno spark-over and no flying arc
Fiber bending radium guaranteed more than 40mm:≥40mm
Application: It is applicable for straight-through connection and diverged
connection in aerial layout , duct and direct buried. It can protect fiber
connectors.
6. FAQ:
1.Can you do design for us?
We have a professional designer team to help our customer do design work.
2.If we have our own supplier which don't have export service, can you do agent for us?
We have agent service for our customer, especially in Yiwu agent, if you need any help, pleasure feel free to contact us.
3.What the regular MOQ for your product?
MOQ:120pcs/Design.If you have many designs,we can have small MOQ.
4.What's your payment term?
We are regular doing 50% deposit and 50% balance payment by TT. Base on our cooperation, we also can do other payment way. If you have any specially request, you can talk with us.
5.How does your quality control?
We have a professional QC team, we will control the goods quality during all the mass production, and we can do inspection service for you.
6.If we don’t have any shipping forwarder in China, could you do this for us?
We have very good relationship forwarder company, we can suggest them to you, and you will get the best shipping price, and have excellent service.
7.How can we get the market information about the popular product?
You can tell us which kind product you are interested in, we will update the hot selling item to you every week.
8.If we want to develop some new item, but maybe we just have some idea, how can you do?
We can make new mold base on your idea, generally, if your quantity is more enough, we can refund the
mold cost to you.
9.I never come to China before, can you be my guide in China?
We can arrange our driver to pick you up from airport to our company, and to book the hotel for you.
Of course, if you want to visit the market or factory, we can arrange our colleague to be your assistant.
10.I can’s speak Chinese or English, can you find one translator for me?
You can tell us which language you speak, we will find the translator for you, and will be together work.
