50M Steel Armored Fiber Optic Patch Cable , LC - LC MM Duplex Fiber Optic Cable

I'm Online Chat Now

50M Steel Armored Fiber Optic Patch Cable , LC - LC MM Duplex Fiber Optic Cable

China 50M Steel Armored Fiber Optic Patch Cable , LC - LC MM Duplex Fiber Optic Cable supplier
50M Steel Armored Fiber Optic Patch Cable , LC - LC MM Duplex Fiber Optic Cable supplier 50M Steel Armored Fiber Optic Patch Cable , LC - LC MM Duplex Fiber Optic Cable supplier

Large Image :  50M Steel Armored Fiber Optic Patch Cable , LC - LC MM Duplex Fiber Optic Cable

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: Rohs, IS9001:2008
Model Number: Armored Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1pc pp bag
Delivery Time: 3days for samples, 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union,Paypal, D/A, D/P
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Product: Mulitmode Duplex Patch Cord Return Loss: ≥35dB
Insertion Loss: ≤0.2dB Tensile Strength: Short Term:>=300N Long Term:>=150N
Polishing: APC PC UPC Length: 30M Or Customized

50M Steel Armored Fiber Optic Patch Cable , LC - LC MM Duplex Fiber Optic Cable

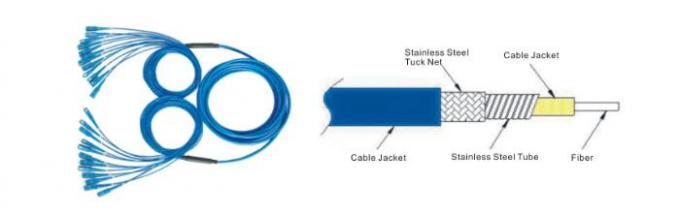

Armored fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".





1. Features:



Simplex ,Duplex and Multi-core accessories for standard or customized structure

Fully compliant with the standards of YD-T826/1996 With PC,UPC,APC 3 types

Fiber diameter: Φ0.9, Φ2.0, Φ3.0, both SM G.657A, G.657B, G.655, G.652D and MM OM1/OM2/OM3 Ceramic ferrules, Protection of metal tube with small caliber

More convenient to deploy and ensure safty Avoid damage from torsion

High tensile and stress coefficient

Convenient for application and highly secure

Application without damage to cable

Manufacture without damage to cable

Cost cutting for maintenance

Fit all kinds of connectors:FC,SC,ST,LC,MU,E2000,D4,SMA and DIN



2. Applications:



 Communication rooms

 FTTH (Fiber to The Home)

 LAN (Local Area Network)

 FOS (fiber optic sensor)

 Fiber Optic Communication System

 Optical fiber connected and transmitted equipment

 Defense combat readiness







3. Specifications:





Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 φ3.0, φ2.0, φ0.9



4. Order information:



1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: “2C” means two cores
5. Cable Diameter: Φ3.0mm, Φ2.0mm, Φ0.9mm
6. Cable Length: 1, 2, 3 meter or customized
7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum





5. Nia Fiber Services:



--Advantage we have:

A: Experienced fiber optic product supplier

B: professional technology term and sales department for your service.

C: Alibaba golden supplier, factory recognized by CE

D:All the question will be dealed within 24 hours.



--Benefit you get:

A: stable quality- coming from good material and technology

B: lower price: not cheapest but the lowest at the same quality

C: good service: satisfactory service before and after sale.

D: delivery time: 20-30 days, delivery product ASAP after the confirmation.

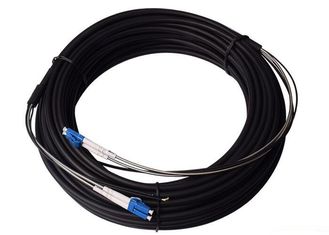

50M Steel Armored Fiber Optic Patch Cable , LC - LC MM Duplex Fiber Optic Cable

50M Steel Armored Fiber Optic Patch Cable , LC - LC MM Duplex Fiber Optic Cable



6. Please let us know what we can do for you in FTTH field.



Nia Fiber always focuses on reliable quality development, by compying with our qality policy"Continue to pursure excellent quality,offer the best products and servies in order to realize customer needs and satisfaction", all along we strive for providing excellent products and service to meet and exceed our customer's need. Nia Fiber constantly works with modern quality anagement methods to ensure the whole service procedure is implemented flexibly and efficiently.



mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.





We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
