Black MPO Patch Cord Metal 12 Fiber Optical Box 165 * 139 * 33mm

I'm Online Chat Now

Black MPO Patch Cord Metal 12 Fiber Optical Box 165 * 139 * 33mm

China Black MPO Patch Cord Metal 12 Fiber Optical Box 165 * 139 * 33mm supplier
Black MPO Patch Cord Metal 12 Fiber Optical Box 165 * 139 * 33mm supplier Black MPO Patch Cord Metal 12 Fiber Optical Box 165 * 139 * 33mm supplier

Large Image :  Black MPO Patch Cord Metal 12 Fiber Optical Box 165 * 139 * 33mm

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: ISO9001:2008,rohs
Model Number: CFO-MPO Patch Cord box

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1pc pp bag
Delivery Time: 3days for samples, 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Return Loss(RL): >=40dB Model Number: MPO 12fiber
Insert Loss(IL): <=0.7dB Polishing: PC/UPC/APC
Color: Black Box: 165*139*33mm

Black MPO Patch Cord Metal 12 Fiber Optical Box 165 * 139 * 33mm

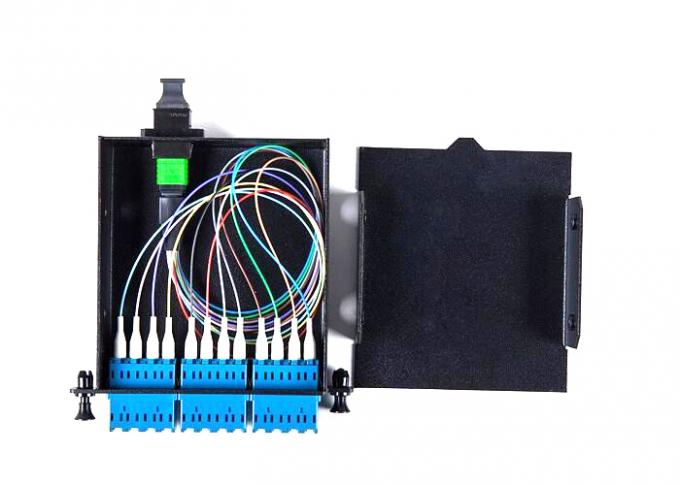

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used,to interconnect MPO backbones with LC or SC patching.

Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.

MPO Cassettes contain factory controlled and tested,MPO-LC fan-outs to deliver optical performance and reliability.Low loss MPO Elite and LC or SC Premium versions are offered

featuring low insertion loss for demanding power budget high speed networks.

The MPO/ MTP patchcords are multi-fiber patchcords using the MPO/MTP connector in fiber counts of 8, 12 or 24. They are available in different cable structures and customized lengths tailored to your exact need





1. Features:



Suitable for MPO/MTP application



High-density and small design;Easy and fast installation



12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts



Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2)fiber.



 Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed quality and performance



 Metallic shell with high strength protect the inner fibers effectively



Supports easy reconfiguration for moves, adds, and changes



2. Application:



 Data Centre Infrastructure



Storage Area Network-Fiber Channel



 Emerging 40 & 100Gps Protocols




Black MPO Patch Cord Metal 12 Fiber Optical Box 165 * 139 * 33mm












3.Technical Specification:



Item Specification
Insertion Loss

≤0.5 dB (typical)

≤0.7 dB (maximum)

Return Loss ≥40 dB
Polishing Type UPC or APC
Durability >500 times
Cable Type OFNP(Plenum) or LSZH
Box Dimension 165x139x33mm





4. Order information:



Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized

Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
