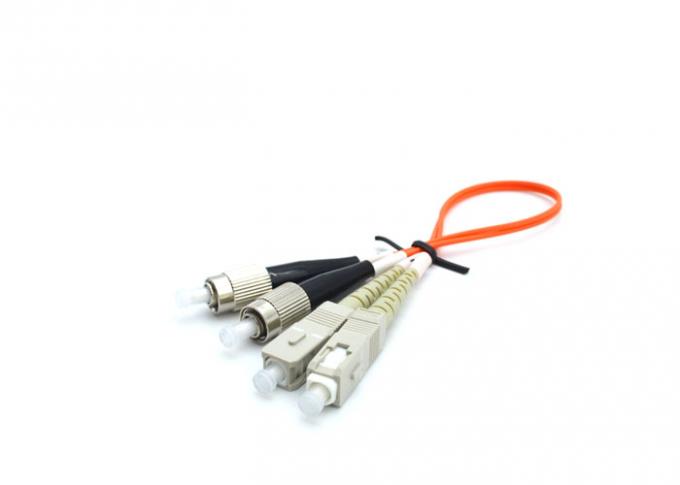

50 125 Fiber Optic Cable Various Color , 3M Multiplex LC ST Fiber Patch Cable
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
1. Features:
Low insertion loss and back reflection loss
Good echangeability
Good Durability
High temperature stability.
Standard: Telcordia GR-326-CORE
Precise connector
Excellent mechanical capability
Patch cords accord with bellcord GR-326 ,ISO9001,ROHS
2. Applications:
Gigabit Ethernet
Active device termination
Telecommunication networks
Video
Multimedia
Premise installations
Local area networks
FTTH and FTTX applications
CATV
3. Specifications:
| Parameter |
| Mode |
Single mode |
Multimode |
| Polish |
UPC |
APC |
PC |
| Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.2dB |
| Return Loss |
≥50dB |
≥60dB |
≥35dB |
| Test Wavelength |
1310/1550nm |
850/1310nm |
| Durability(500 Matings) |
≤0.2dB |
| Operating Temperature |
-20℃~+70℃ |
| Storage Temperature |
-40℃~+85℃ |
| Fire Resistant |
IEC 60794-2-30 |
| Standards-Compliant |
ROHS,IEC and GR-326 |
| Specification |
| Fiber type |
Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,G657A2,G657B2,G657B3 |
Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)50/125-OM4 |
| Fiber brand |
YOFC, Corning, OFS... |
| Connector type |
SC, LC, FC, ST, E2000, MU, MTRJ, MPO/MTP, SMA, DIN |
| Cord type |
Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores... |
| Cable diameter |
0.9mm, 2.0mm, 3.0mm.... |
| Cable jacket |
PVC, LSZH, OFNR, OFNP |
| Length(M) |
0.3m,1m,2m,5m,10m,25m,50m,100m |
| Cable Type |
Cable Size (mm) |
Cable Weight kg/km |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N) |
Bending Radius
Static/Dynamic (mm)
|
| GJA-II-YX2-02Xn |
8.9±0.5 |
58.1 |
200/660 |
300/1000 |
20D/10D |
| MPC-G-YX2-04Xn |
8.9±0.5 |
58.3 |
200/660 |
300/1000 |
20D/10D |
| MPC-G-YX2-06Xn |
9.8±0.5 |
73 |
200/660 |
300/1000 |
20D/10D |
| MPC- G-YX2-08Xn |
10.6±0.5 |
95.7 |
200/660 |
300/1000 |
20D/10D |
| MPC- G-YX2-12Xn |
13.4±0.5 |
155.2 |
200/660 |
300/1000 |
20D/10D |
| G.652 |
G.655 |
50/125μm |
62.5/125μm |
| Attenuation |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
| (+20°C) |
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
| |
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
| |
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
| Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
| @1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
4. FAQ:
Q1: How to 100% guarantee the insertion loss of the adapters is below 0.1dB/0.2dB?
Firstly the quality of the sleeve , secondly the accurate size of housing,
then 100% inspection in the production is must.
Q2: Why some times too tight or loose when assemble the adapters to the plate?
There is tolerance of the thickness of the plate especially baking finished plate, you must make sure the gap distance is just match the plate thickness.
Q3: How to keep the clearance of the endface of the connectors?
Do not take off the dust cap in transportation and stocking, make sure not to touch the end face with hand. If found dirty or scratch under telescope, please clean it with alcohol.
Q4: What’s the warranty of ADTEK fiber optic patch cord?
We can ensure lifetime warranty as our fiber optic cable is UL approved and all our
fiber optic patch cords are 100% testing passed
Q5: Can we print our logo on the fiber cable jacket?
Yes, of course. You can decide the print on the fiber cable jacket. MOQ is 1KM when
you want to add your logo. No MOQ as neutral printing.
Q6: What is the insertion loss for singlemode?
It is ≤0.2dB (Typical ≤0.1dB)
Q7: Can you do the 3D (interferometer) test?
Yes, we have the interferometer in our factory, we usually do the test as customers
request. Our 30 test passing rate is over 90%.
5. Nia Fiber Service:
Before Sale Service:
We provide professional offer. Provide detailed products test report and related specifications.
We provide professional technology support to meet the requirements of customers.
Within 12 hours of the corresponding customer inquiry,our commissioners will promptly get in touch with the customers.
After Sale Service:
Nia Fiber comes with a one year limited warranty from the date of the purchase by the clients. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. we could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test,we will replace it for you.We are equipped with the good after service department and never escape our responsibility.
6. Nia Fiber care our life.
Nia Fiber always foucuses on reliable quality development. By complying with our qulity policy"Continue to pursue excellent quality, offer the best products and serices in order to realize customer needs and satisfaction", all along we strive for providing excellent products and service to meet and exceed our customer's need. Nia Fiber constantly works with modern quality management methods to ensure the whole service procedure is implemented flexibly and efficiently.
Nia Fiber has established complete quality,environment and occupational health and safety assurance system to design, produce and supply its range of fiber cable and FTTH products.
mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
