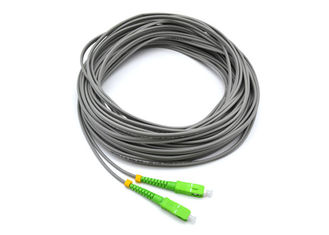

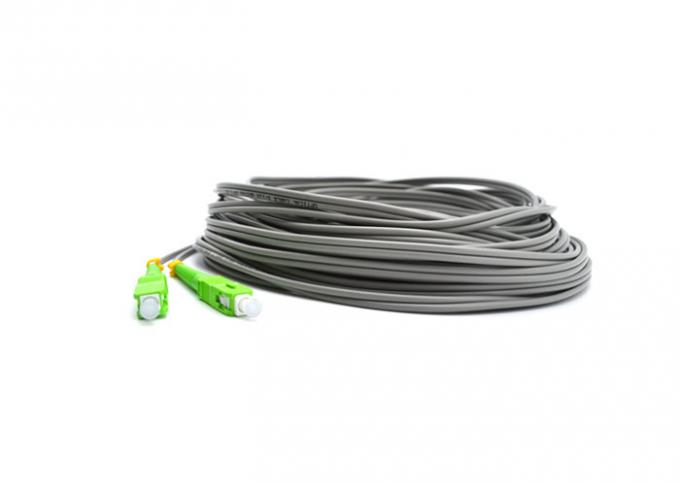

Simplex SC / APC Pigtail SM G652D 2.0mm 2 Core Single Mode Fiber Jumpers
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
1. Features:
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Excellent mechanical endurance
Good in repeatability
Good in exchange
Green Production, CE, RoHS Standard
2. Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
3. Specifications:
| Parameter |
| Mode |
Single mode |
Multimode |
| Polish |
UPC |
APC |
PC |
| Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.2dB |
| Return Loss |
≥50dB |
≥60dB |
≥35dB |
| Test Wavelength |
1310/1550nm |
850/1310nm |
| Durability(500 Matings) |
≤0.2dB |
| Operating Temperature |
-20℃~+70℃ |
| Storage Temperature |
-40℃~+85℃ |
| Fire Resistant |
IEC 60794-2-30 |
| Standards-Compliant |
ROHS,IEC and GR-326 |
| Specification |
| Fiber type |
Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,G657A2,G657B2,G657B3 |
Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)50/125-OM4 |
| Fiber brand |
YOFC, Corning, OFS... |
| Connector type |
SC, LC, FC, ST, E2000, MU, MTRJ, MPO/MTP, SMA, DIN |
| Cord type |
Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores... |
| Cable diameter |
0.9mm, 2.0mm, 3.0mm.... |
| Cable jacket |
PVC, LSZH, OFNR, OFNP |
| Length(M) |
0.3m,1m,2m,5m,10m,25m,50m,100m |
| Cable Type |
Cable Size (mm) |
Cable Weight kg/km |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N) |
Bending Radius
Static/Dynamic (mm)
|
| GJA-II-YX2-02Xn |
8.9±0.5 |
58.1 |
200/660 |
300/1000 |
20D/10D |
| MPC-G-YX2-04Xn |
8.9±0.5 |
58.3 |
200/660 |
300/1000 |
20D/10D |
| MPC-G-YX2-06Xn |
9.8±0.5 |
73 |
200/660 |
300/1000 |
20D/10D |
| MPC- G-YX2-08Xn |
10.6±0.5 |
95.7 |
200/660 |
300/1000 |
20D/10D |
| MPC- G-YX2-12Xn |
13.4±0.5 |
155.2 |
200/660 |
300/1000 |
20D/10D |
| G.652 |
G.655 |
50/125μm |
62.5/125μm |
| Attenuation |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
| (+20°C) |
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
| |
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
| |
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
| Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
| @1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
4. FAQ:
Q1:How to 100% guarantee the insertion loss of the adapters is below 0.1dB/0.2dB?
Firstly the quality of the sleeve , secondly the accurate size of housing,
then 100% inspection in the production is must.
Q2:Why some times too tight or loose when assemble the adapters to the plate?
There is tolerance of the thickness of the plate especially baking finished plate, you must make sure the gap distance is just match the plate thickness.
Q3:How to keep the clearance of the endface of the connectors?
Do not take off the dust cap in transportation and stocking, make sure not to touch the end face with hand. If found dirty or scratch under telescope, please clean it with alcohol.
Q4:What’s the warranty of ADTEK fiber optic patch cord?
We can ensure lifetime warranty as our fiber optic cable is UL approved and all our
fiber optic patch cords are 100% testing passed
Q5: Can we print our logo on the fiber cable jacket?
Yes, of course. You can decide the print on the fiber cable jacket. MOQ is 1KM when
you want to add your logo. No MOQ as neutral printing.
Q6: What is the insertion loss for singlemode?
It is ≤0.2dB (Typical ≤0.1dB)
Q7: Can you do the 3D (interferometer) test?
Yes, we have the interferometer in our factory, we usually do the test as customers
request. Our 30 test passing rate is over 90%.
