Green Simple FC Fiber Optic Adapter Single Mode With Zirconia Sleeves ROHS Approved
SC adapters are flange type, single mode adapters are with zirconia sleeve while multimode fiber adapters are with bronze sleeve. free samples SC/FC/ST/LC/MU/E2000/MTRJ fiber optic adapter , optical connector,5db-20db fiber optic attenuator factory
1. Features:
Approved by ROHS and TLC.
Zirconia sleeves or phosphor bronze sleeves optional.
Excellent interchangeability and repeatability
High intensity, wear ability, dimensional precision.
Environmentally stable.
Good temperature characteristics.
Customized specification.
2. Appications:
Fiber optic communication network
Optical Broadband Access Network
CATV system
Optic instrumentation
Optic LAN
Adapter docking
3. Specifications:
| Parameter |
Unit |
LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU |
MTRJ |
E2000 |
| SM |
MM |
SM |
MM |
SM |
| PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
APC |
| Insertion Loss (Typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
| Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
| Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
| Repeatability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
| Durability |
Time |
>1000 |
>1000 |
>1000 |
| Operating Temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
| Storage Temperature |
°C |
-45~85 |
-45~85 |
-45~85 |

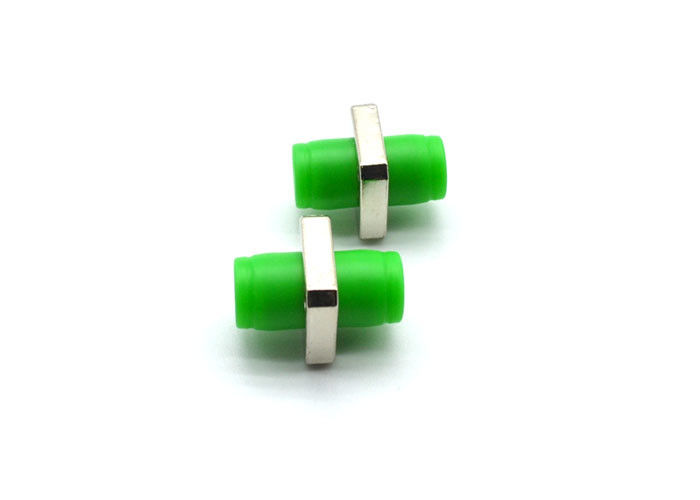

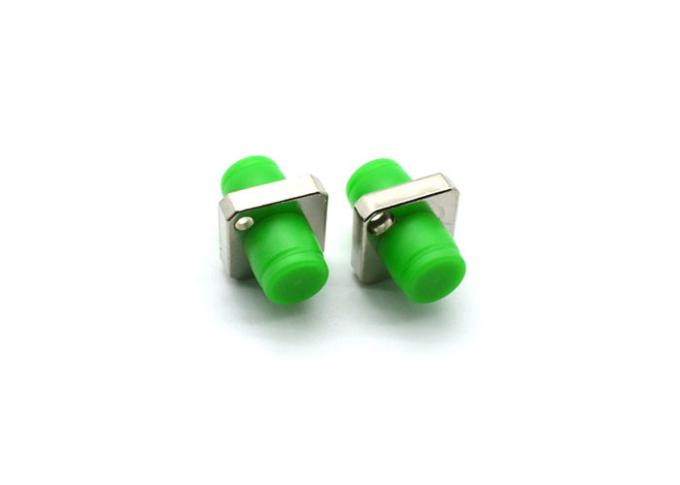

4. Product Show:
5. FAQ:
1. What is your quality control?
-Quality is our soul and culture.We have 100%strict inspection and testing before shipment.We will return the money to you if there is quality problem.
2. Can you accept small order?
-Yes,small order is available in our company.We support new project of our customers as we know business is always from small to big.
Your sucess is my business.
3. Can I order samples before placing the bulk order?
-Yes,samples is certainly for your test before the bulk order.It is normal process,we always deal with other clients.
However,we will charge for a small amount of deposit in case the investment on new samples.But please donot worry, the sample deposit will refund to you when bulk order fixed.
4. What is the lead time for samples?
-About sample making,it usually takes 1-3days include testing to make sure its excellent.
If urgently,please kindly let us know,we will do our best to catch up with your schedule.
5. Can you supply customized products and logo?
-Yes,of course we can.We supply OEM&ODM service.You can send us your drawing.
