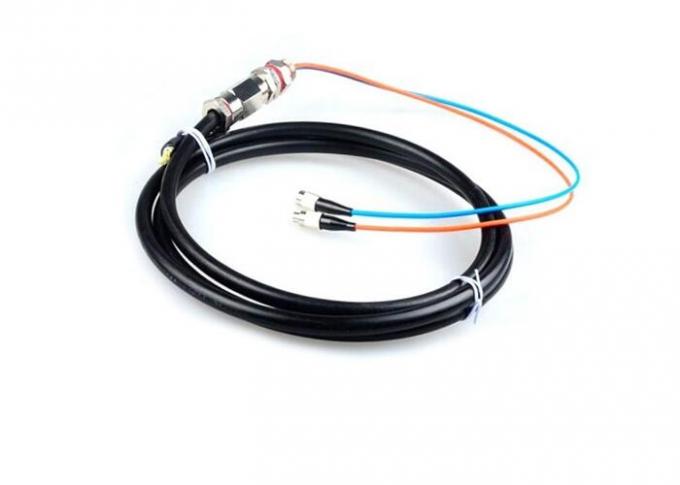

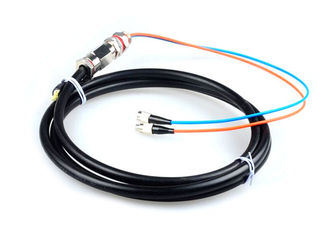

Single Mode FC / UPC Fiber Optic Pigtail Waterproof 2 Core 5M G652D Optical Fiber
Nia Fiber offers a range of pigtails designed and manufactured for demanding LAN and Telecom applications.Subunit: 0.9mm, 2.0mm or 3.0mm according to clients' need, it can be also made into duplex type Fiber: singlemode OS1/OS2, G657, G652(9/125um), OM1(62.5/125um), OM2, OM3 and OM4(50/125um) 2 core,4 core, 6 core, 8 core, 10 core, 12core pigtails with the following connectors ST, SC, LC,FC, MTRJ, SMA, E2000, MU
Available in PC, UPC and APC
1. Features:
The number of the core is customized
Easily mounted and high reliability
Standard 5/8-24 aluminum entry fitting is sealed with epoxy to protect against water penetration and provides>100IBS of cable pull-outer jacket.
2mm subunits guarantee maximum clearance inside node and amplifier housings
Waterproof, suitable for adverse outdoor environment
Compliant with: IEC, JIS, Telcordia
Customer length
Minimum loss
2. Applications:
Long Distance Optical Communication System
FTTP
Telecommunication Network
CATV Network
Local Area Network
Active device termination
Data system network
FTTH CATV Optic fiber waterproof pigtail
water proof cables includes 4c, 6c,8c; SM, MM,ST,SC,LC,DIN,MTRJ/D4/MU/E2000, Polishin
3. Specifications:
| Connector Type |
LC/FC/ST/SC Waterproof Pigtail |
| Fiber Type |
Single-Mode |
| Cable Diameter |
9.8 ,11.8 |
| Insertion Loss |
PC≤0.20dB UPC≤0.20dB APC≤0.30dB |
| Return Loss |
PC≥40dB UPC≥50dB APC≥60dB |
| Working Condition |
-40℃ to +75℃ |
| End Face Geometry |
The radius of curvature : 10-25(PC/UPC) 5-12(APC)
Apex Offset : 0-50um
Fiber height : -100 to +100nm
|
| Characteristic |
High precision alignment
Proof erosion body
Comply with ROSH
Material comply with the requirement of UL 94V-0
|
| The connector comply with the standard of NTT/TELCORDIA/IEC/ITU |
| G.652 |
G.655 |
50/125μm |
62.5/125μm |
| Attenuation |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
| (+20°C) |
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
| |
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
| |
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
| Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
| @1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
4. FAQ:
1. What is your quality control?
-Quality is our soul and culture.We have 100%strict inspection and testing before shipment.We will return the money to you if there is quality problem.
2. Can you accept small order?
-Yes,small order is available in our company.We support new project of our customers as we know business is always from small to big.
Your sucess is my business.
3. Can I order samples before placing the bulk order?
-Yes,samples is certainly for your test before the bulk order.It is normal process,we always deal with other clients.
However,we will charge for a small amount of deposit in case the investment on new samples.But please donot worry, the sample deposit will refund to you when bulk order fixed.
4. What is the lead time for samples?
-About sample making,it usually takes 1-3days include testing to make sure its excellent.
If urgently,please kindly let us know,we will do our best to catch up with your schedule.
5. Can you supply customized products and logo?
-Yes,of course we can.We supply OEM&ODM service.You can send us your drawing.
