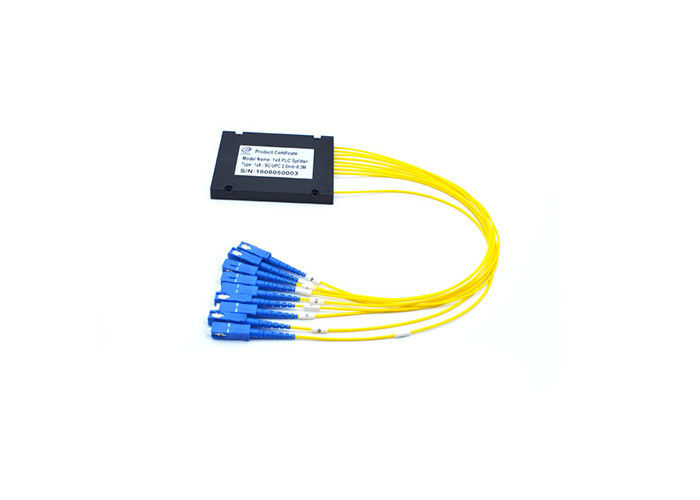

1X8 PLC Splitter With Black Cassette , Reliability PLC Optical Splitter For FTTB
Planar Lightwave Circuit Splitter (PLC Splitter) is based on planar waveguide optical power distribution products, with low insertion loss and polarization dependent loss, small size, wide operating wavelength range, high channel uniformity and good characteristics, generally used in passive optical network (EPON, BPON, GPON, etc.) to realize the optical power splitting. Our PLC splitters are compliant with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, YD/T 1117-2001 and RoHS standards.
1. Technical Performance:
Table1. 1XN PLC splitter(with connector)
| Parameters |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
| Operating Wavelength (nm) |
1260～1650 |
| Insertion Loss (dB) |
≤4.3 |
≤7.5 |
≤11.0 |
≤14.0 |
≤17.0 |
≤21.0 |
| Loss Uniformity (dB) |
≤0.6 |
≤0.6 |
≤0.8 |
≤1.2 |
≤1.5 |
≤1.8 |
| PDL (dB) |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.3 |
| Return loss(dB) |
UPC≥50dB；APC≥55dB |
| Directivity (dB) |
≥55 |
| Pigtail Length (m) |
1m or customer specified |
| Fiber Type |
G657A or customer specified |
| Operation temperature(℃) |
-40~85 |
|
Note:
All measurements were done at room temperature.
Above parameters all testing at 1310nm,1550nm wavelength, if it test at 1260~1300nm,1600～1650nm,then insertion loss would be add 0.3dB based on above parameters.
|
Table2. 2XN PLC splitter(with connector)
| Parameters |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
| Operating Wavelength (nm) |
1260～1650 |
| Insertion Loss (dB) |
≤4.5 |
≤8.0 |
≤11.7 |
≤14.7 |
≤17.9 |
≤21.2 |
| Loss Uniformity (dB) |
≤0.8 |
≤1.0 |
≤1.0 |
≤1.5 |
≤2.0 |
≤2.5 |
| PDL (dB) |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.3 |
| Return loss(dB) |
UPC≥50dB；APC≥55dB |
| Directivity (dB) |
≥55 |
| Pigtail Length (m) |
1m or customer specified |
| Fiber Type |
G657A or customer specified |
| Operation temperature(℃) |
-40~85 |
|
Note:
All measurements were done at room temperature.
Above parameters all testing at 1310nm,1550nm wavelength, if it test at 1260~1300nm,1600～1650nm,then insertion loss would be add 0.3dB based on above parameters.
|
2. Features:
The quality is more credible and stable than fusion coupler splitter
With low insertion loss, Low Polarization Dependent Loss, better return loss and the directivity,
Broadband operating, wavelength :1260nm ~1650nm wavelength range to achieve the planned distribution of optical power.
Excellent Uniformity
High reliability, stability
3. Specifications:
Type: Bare-fiber type,micro type,ABS box type,Cassette type
Adapter type of splitter: SC/UPC, SC/APC
1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
4. Applications:
Access Network,EPON,GPON or WDM-PON
CATV system
Optical communication systems
Testing instruments
FTTH, FTTB
