Yellow / Orange Micro Fiber Optic Cable , Anti Torsion Single Mode Fiber Cable
1. Description

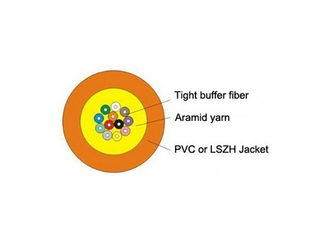

MFC multi-purpose distribution cable use multi-fiber subunits (￠250um colored fiber, aramid yarn as strength member), A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
2. Features
High-integrated colored bare fiber design.
Aramid yarn as strength member making cable have excellent tensile strength performance.
Excellent performance of anti-torsion.
The outer jacket material has many advantages such as anticorrosion, waterproof, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
All dielectric structure protect cable from electromagnetic influence.
Scientific design with strict processing.
Applicable for multi optical fiber patch cord.
Applicable for backbone distribution cable in building.
3. Optical Characteristics
| Items |
Fiber type |
| 50/125um |
62.5/125um |
G.652 |
G.655 |
| Attenuation(+20℃) |
@850nm |
≤3.5dB/km |
≤3.5dB/km |
|
|
| @1300nm |
≤1.5dB/km |
≤1.5dB/km |
|
|
| @1310nm |
|
|
≤0.50dB/km |
≤0.50dB/km |
| @1550nm |
|
|
≤0.40dB/km |
≤0.40dB/km |
| Bandwidth (Class A) |
@850nm |
≥500MHz•km |
≥200MHz•km |
|
|
| @1300nm |
≥1000MHz•km |
≥600MHz•km |
|
|
| Numerical Aperture |
0.200±0.015NA |
0.275±0.015NA |
|
|
| Cable Cut-off Wavelength λcc |
|
|
≤1260nm |
≤1450nm |
4. Technical Parameters
|
Fiber
Count
|
Cable Diameter
(mm)
|
Cable Weight
(kg/km)
|
Bending Radius
Dynamic/Static
(mm)
|
Tensile Strength
Long/Short term
(N)
|
| 2~12 |
4.5 |
6.3 |
20D/10D |
30/100 |
|
Note:
Transport/Storage/Operating Temperature: -20Ċ～+60Ċ.
All data in the table are for reference and subject to change without notification.
|
