Big D Fiber Optic Adapter Simplex FC Flange Adapter specification Customized for CATV
free samples SC/FC/ST/LC/MU/E2000/MTRJ fiber optic adapter , optical connector,5db-20db fiber optic attenuator factory
1. Features:
Approved by ROHS and TLC.
Zirconia sleeves or phosphor bronze sleeves optional.
Excellent interchangeability and repeatability
High intensity, wear ability, dimensional precision.
Environmentally stable.
Good temperature characteristics.
Customized specification.
2. Appications:
Optical communication system
Optical instruments
CATV
Fiber optical sensors
3. Specifications:
| Parameter |
Unit |
LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU |
MTRJ |
E2000 |
| SM |
MM |
SM |
MM |
SM |
| PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
APC |
| Insertion Loss (Typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
| Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
| Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
| Repeatability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
| Durability |
Time |
>1000 |
>1000 |
>1000 |
| Operating Temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
| Storage Temperature |
°C |
-45~85 |
-45~85 |
-45~85 |

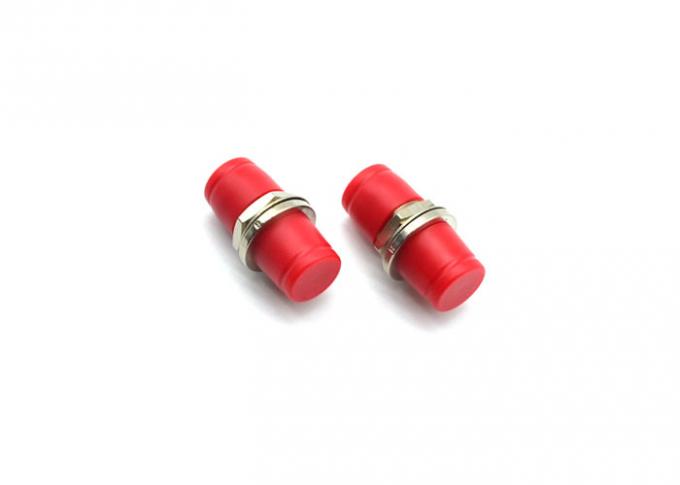

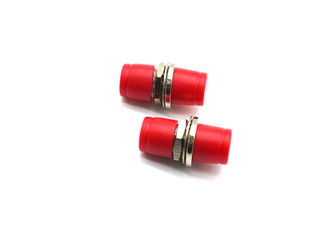

4. Product Show:
5. FAQ:
1. Do you provide free samples?
yes, we can supply some free samples , the buyer should bear the shipping cost.
2. Can we become your distributor or agency in our area?
yes, it is possible if we do not have an agency or distributor in your area. The best way to start the business and approve your good intentions through several regular orders over a period. we will support very good products to our distributor including samples, price and other supports. please contact with our sales manager for more details.
3. Can you supply OEM products under our brand?
yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.
6. Nia Fiber Services:
Before Sale Service:
We provide professional offer. Provide detailed products test report and related specifications.
We provide professional technology support to meet the requirements of customers.
Within 12 hours of the corresponding customer inquiry,our commissioners will promptly get in touch with the customers.
After Sale Service:
Nia Fiber comes with a one year limited warranty from the date of the purchase by the clients. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. we could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test,we will replace it for you.We are equipped with the good after service department and never escape our responsibility.
