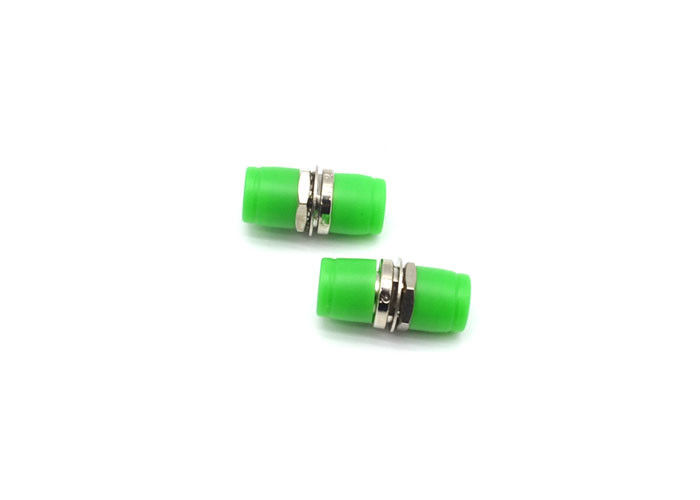

Small D Fiber Optic Adapter Small Flange Adapter Green With UPC Coupling Face
free samples SC/FC/ST/LC/MU/E2000/MTRJ fiber optic adapter , optical connector,5db-20db fiber optic attenuator factory.There are three kinds of FC fiber adapters, square type, single D type and double D type. All FC fiber adapters are with metal housing, single-mode FC fiber adapters are with zirconia sleeves, multi-mode FC fiber adapters are with bronze sleeves.
1. Features:
Approved by ROHS and TLC.
Zirconia sleeves or phosphor bronze sleeves optional.
Excellent interchangeability and repeatability
High intensity, wear ability, dimensional precision.
Environmentally stable.
Good temperature characteristics.
Customized specification.
2. Appications:
Optical fiber communication system.
LAN, WAN, Broadband.
Fiber optic CATV, FTTP.
Optical fiber access network.
Testing instruments, fiber optical sensors.
3. Specifications:
| Parameter |
Unit |
LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU |
MTRJ |
E2000 |
| SM |
MM |
SM |
MM |
SM |
| PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
APC |
| Insertion Loss (Typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
| Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
| Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
| Repeatability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
| Durability |
Time |
>1000 |
>1000 |
>1000 |
| Operating Temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
| Storage Temperature |
°C |
-45~85 |
-45~85 |
-45~85 |

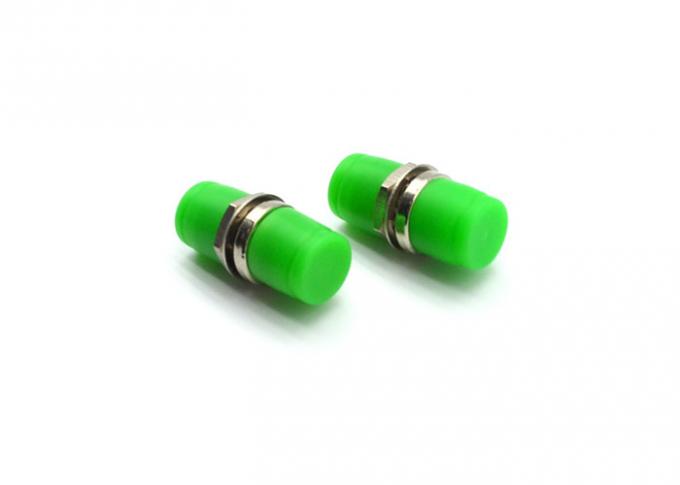

4. Product Show:
5. FAQ:
1. Are you a trade company or a manufacturer?
We are an manufacturer specialized in Fiber Optic PLC splitter, Patch Cords,Adapter ,Fast connector and other Communication Products. OEM & ODM service are available.
2. What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
3. Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick up from our office.
4. The cable marking can be as required to printing?
Yes,You have only to give us your marking.
6. Nia Fiber Services:
Before Sale Service:
We provide professional offer. Provide detailed products test report and related specifications.
We provide professional technology support to meet the requirements of customers.
Within 12 hours of the corresponding customer inquiry,our commissioners will promptly get in touch with the customers.
After Sale Service:
Nia Fiber comes with a one year limited warranty from the date of the purchase by the clients. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. we could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test,we will replace it for you.We are equipped with the good after service department and never escape our responsibility.
