Outdoor Optical Fiber Pigtail SC / APC 2 Core Black Jacket For Local Area Network

I'm Online Chat Now

Outdoor Optical Fiber Pigtail SC / APC 2 Core Black Jacket For Local Area Network

China Outdoor Optical Fiber Pigtail SC / APC 2 Core Black Jacket For Local Area Network supplier
Outdoor Optical Fiber Pigtail SC / APC 2 Core Black Jacket For Local Area Network supplier Outdoor Optical Fiber Pigtail SC / APC 2 Core Black Jacket For Local Area Network supplier

Large Image :  Outdoor Optical Fiber Pigtail SC / APC 2 Core Black Jacket For Local Area Network

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: Rohs SGS ISO9001:2008
Model Number: Waterproof Fiber Optic Pigtail

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: Plastic bag + standard carton.
Delivery Time: 3days for samples, 7-15days for bulk order
Payment Terms: Paypal;, L/C, T/T, Western Union
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Color: Black Jacket Wavelength: 1310/1550
Type: Singlemode Application: FTTH FTTB FTTX Network
Repeatabiity: ±0.1dB Test: 100% Fluke Test Approved

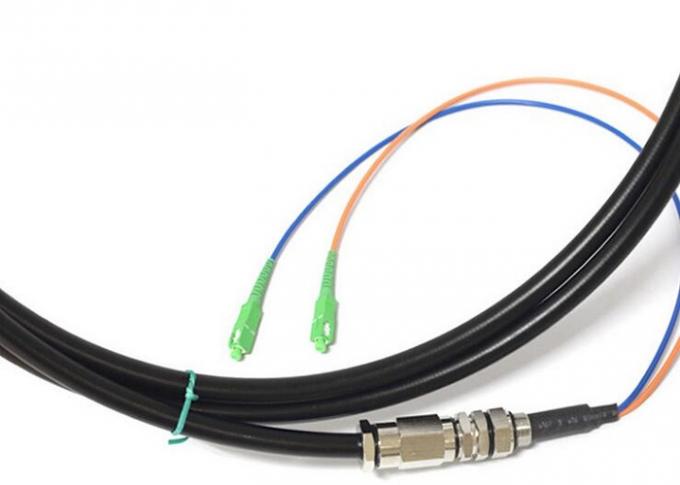

Outdoor Fiber Optic Pigtail SC / APC 2 Core Black Jacket For Local Area Network

Water-proof fiber Pigtail cable is a length of fiber with one-end connector attached, suitable for outdoor use and adverse environmental condition.
1. Features:
The number of the core is customized
Easily mounted and high reliability
Standard 5/8-24 aluminum entry fitting is sealed with epoxy to protect against water penetration and provides>100IBS of cable pull-outer jacket.
2mm subunits guarantee maximum clearance inside node and amplifier housings
Waterproof, suitable for adverse outdoor environment
Compliant with: IEC, JIS, Telcordia
Customer length
Minimum loss
2. Applications:
 Long Distance Optical Communication System
 FTTP
 Telecommunication Network
 CATV Network
 Local Area Network
 Active device termination
 Data system network
 FTTH CATV Optic fiber waterproof pigtail
 water proof cables includes 4c, 6c,8c; SM, MM,ST,SC,LC,DIN,MTRJ/D4/MU/E2000, Polishing

Outdoor Optical Fiber Pigtail SC / APC 2 Core Black Jacket For Local Area Network

3. Specifications:


SPECIFICATION: fiber optic pigtails
Connector Type LC/FC/ST/SC Waterproof Pigtail
Fiber Type Single-Mode
Cable Diameter 9.8 ,11.8
Insertion Loss PC≤0.20dB UPC≤0.20dB APC≤0.30dB
Return Loss PC≥40dB UPC≥50dB APC≥60dB
Working Condition -40℃ to +75℃
End Face Geometry





The radius of curvature : 10-25(PC/UPC) 5-12(APC)



Apex Offset : 0-50um

Fiber height : -100 to +100nm



Characteristic

High precision alignment

Proof erosion body

Comply with ROSH

Material comply with the requirement of UL 94V-0

The connector comply with the standard of NTT/TELCORDIA/IEC/ITU



G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm     ≤3.0 dB/km ≤3.0 dB/km
(+20°C) @1300nm     ≤1.0 dB/km ≤1.0 dB/km
  @1310nm ≤0.36 dB/km ≤0.40 dB/km
  @1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km



Please Note:

1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: simplex/duplex
5. Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customized
7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
