Indoor 2 Core Optical Fiber Cable Flat Duplex 1KM 2KM For Patch Cord / Pigtail

I'm Online Chat Now

Indoor 2 Core Optical Fiber Cable Flat Duplex 1KM 2KM For Patch Cord / Pigtail

China Indoor 2 Core Optical Fiber Cable Flat Duplex 1KM 2KM For Patch Cord / Pigtail supplier

Large Image :  Indoor 2 Core Optical Fiber Cable Flat Duplex 1KM 2KM For Patch Cord / Pigtail

Product Details:

Place of Origin: China
Certification: IS9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 Kilometer/Kilometers
Packaging Details: 1kilometer packing
Delivery Time: 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 5000 Kilometer/Kilometers per Month
Contact Now
Detailed Product Description
Fiber Capacity: 2 Cores Fiber Type: Single Mode Or Multi Mode
Sheath Color: Yellow, Orange, Qqua Or As Requested Sheath Material: PVC, LSZH Or As Requested
Operating Temperature: -20~+60℃ Length Per Drum: 1KM Or 2KM
Application: Patch Cord Of Pigtail Structure: Flat Shape

Indoor 2 Core Optical Fiber Cable Flat Duplex 1KM 2KM For Patch Cord / Pigtail



1. Description

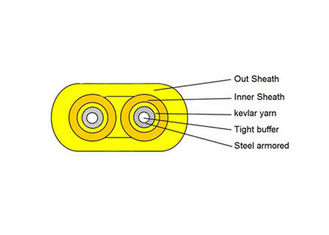

DFC duplex flat cable use ¢900um or ¢600um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH (low smoke, Zero halogen, Flame-retardant) material as inner jacket. The cable is completed with a layer of flat PVC or LSZH(low smoke, Zero halogen, Flame-retardant) jacket.



2. Features:



Tight buffer fiber ease of stripping.
Soft, flexible, easy to handle.
Good mechanical and environmental property.
Tight buffer fiber have excellent flame-retardant performance.
Flat structure ensure compact arrangement of fibers.
The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
All dielectric structure protect it from electromagnetic influence.
Scientific design with serious processing art.
Applicable for duplex optical fiber jumper or pigtail.
Applicable for indoor riser level and plenum level cable distribution.
Applicable for interconnect between instruments, communication equipments.

Comply with standard YD/T 1258.2-2009, ICEA-596,GR-409,IEC 60794,etc.







Indoor 2 Core Optical Fiber Cable Flat Duplex 1KM 2KM For Patch Cord / Pigtail

3. Optical Characteristics



Items Fiber type
50/125um 62.5/125um G.652 G.655
Attenuation(+20℃) @850nm ≤3.5dB/km ≤3.5dB/km
@1300nm ≤1.5dB/km ≤1.5dB/km
@1310nm     ≤0.50dB/km
@1550nm     ≤0.40dB/km ≤0.40dB/km
Bandwidth (Class A) @850nm ≥500MHz•km ≥200MHz•km
@1300nm ≥1000MHz•km ≥600MHz•km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc     ≤1260nm ≤1450nm

△a(-20℃~+60℃)

Attenuation at temperature cycling △a (-20℃~+60℃)

@1300nm ≤0.25dB/km ≤0.25dB/km
@1550nm     ≤0.10dB/km ≤0.15dB/km



4. Technical Parameters



Fiber

Count

Cable Diameter
(mm)

Cable Weight
(kg/km)

Tensile Strength

Long/Short term
(N)

Crush Resistance

Long/Short term
(N/100mm)

Bending Radius

Dynamic/Static
(mm)

PVC Jacket

LSZH Jacket

2 3.1*5.2 17.0 17.5 100/200 100/500 20H/10H
2 4.0*7.0 26.1 27.0 100/200 100/500 20H/10H

Note:

Transport/Storage/Operating Temperature: -20Ċ~+60Ċ,Installation Temperature: -5Ċ~+50Ċ.

All data in the table are for reference and subject to change without notification.





5. FAQ


Are you a trade company or a manufacturer?
We are an manufacturer specialized in Fiber Optic PLC splitter, Patch Cords,Adapter ,Fast connector and other Communication Products. OEM & ODM service are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick up from our office.
The cable marking can be as required to printing?
Yes,You have only to give us your marking.



6. Our Serivces



Any question will be replied within 24 hours.

Professinal manufacture,Welcom to vist our company.

100% test before shipping.

OEM/ODM is avaliable(As required print logo and customized color).

Fast delivery time(2 days for samples,order 3~7 days for bulk production)
