Multimode Optical Fiber Cable Indoor Duplex Zipcord Interconnect With LSZH Sheath
1. Description

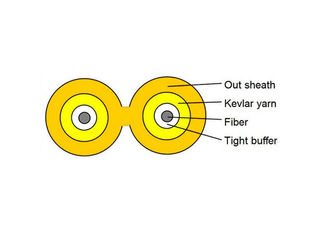

ZIC zipcord Interconnect cable use ￠900um or ￠600um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units. And the cable is completed with a figure 8 PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
2. Features:
Applicable for indoor cabling system.
Applicable for Duplex Optical fiber jumper or pigtail.
Applicable for optical connection in optical communication machine room, optical distribution frame, optical device or equipment.
Applicable for indoor riser level and plenum level cable distribution.
Applicable for interconnect between instruments, communication equipments.
Comply with standard YD/T 1258.2-2009, ICEA-596,GR-409,IEC 60794,etc.
3. Optical Characteristics
| Items |
Fiber type |
| 50/125um |
62.5/125um |
G.652 |
G.655 |
| Attenuation(+20℃) |
@850nm |
≤3.5dB/km |
≤3.5dB/km |
|
|
| @1300nm |
≤1.5dB/km |
≤1.5dB/km |
|
|
| @1310nm |
|
|
≤0.50dB/km |
|
| @1550nm |
|
|
≤0.40dB/km |
≤0.40dB/km |
| Bandwidth (Class A) |
@850nm |
≥500MHz•km |
≥200MHz•km |
|
|
| @1300nm |
≥1000MHz•km |
≥600MHz•km |
|
|
| Numerical Aperture |
0.200±0.015NA |
0.275±0.015NA |
|
|
| Cable Cut-off Wavelength λcc |
|
|
≤1260nm |
≤1450nm |
|
△a(-20℃~+60℃)
Attenuation at temperature cycling △a (-20℃~+60℃)
|
@1300nm |
≤0.25dB/km |
≤0.25dB/km |
|
|
| @1550nm |
|
|
≤0.10dB/km |
≤0.15dB/km |
4. Technical Parameters
|
Fiber
Count
|
Cable Diameter
(mm)
|
Cable Weight
(kg/km)
|
Tensile Strength
Long/Short term
(N)
|
Crush Resistance
Long/Short term
(N/100mm)
|
Bending Radius
Dynamic/Static
(mm)
|
|
PVC Jacket
|
LSZH Jacket
|
| 2 |
1.6*3.2 |
4.3 |
4.7 |
60/120 |
100/500 |
20D/10D |
| 2 |
2.0*4.0 |
6.3 |
6.7 |
90/150 |
100/500 |
20D/10D |
| 2 |
3.0*6.0 |
12.2 |
13.0 |
120/220 |
100/500 |
20D/10D |
|
Note:
Transport/Storage/Operating Temperature: -20Ċ～+60Ċ,Installation Temperature: -5Ċ～+50Ċ.
All data in the table are for reference and subject to change without notification.
|
5. Our Serivces
Any question will be replied within 24 hours.
Professinal manufacture,Welcom to vist our company.
100% test before shipping.
OEM/ODM is avaliable(As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)
