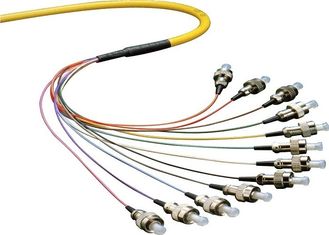

Bunch Fiber Optic Pigtail SM MM 0.9 / 2.0mm 48 Cores Duplex With FC Connector
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The bunch fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
1. Features:
ANSI, Bellcore, TIA/EIA 568C, IEC Strandards
Low Insertion Loss and High Retum Loss
Excellent Repeatability and Changeability
Simplex and Duplex Available
Ceramic Ferrules
Riser, Plenum & LSZH cable option
Optical performance 100% factory tested
2. Applications:
Wiring of local area network between different enterprise buildings
Connection of optical links in optical active devices
Wiring in communication base station and distribution case
Production and testing of optical devices
Fiber optic communication system, CATV and telecommunication networ
LANs and WANs
FTTx systems
3. Specifications:
| Parameter |
Specifiction |
| Matched Connector Type |
SC/LC/FC/ST/MU/D4/DIN |
| Fiber Type |
Single Mode |
Multimode |
| Operating Bandwidth Range |
1250-1650nm |
850nm,1300nm |
| Testing Wavelength |
1310,1550nm |
850nm,1300nm |
| Insertion Loss |
Typical<0.2dB,Max<0.3dB |
Typical<0.15dB,Max<0.25dB |
| Return Loss |
UPC>= 50.0dB,APC>=60.0dB |
>=35.0dB |
| Repeatability |
<=0.10dB |
|
| Exchangeability |
<=0.20dB |
|
| Durability |
1,000 Mating, Typical<=0.20dB |
|
| Tensile Force |
>120N(except 0.9mm cable) or Customize |
|
| Operating Temperature |
min20- 70degrees |
|
| Storage Temperature |
min40- 85 degrees |
|

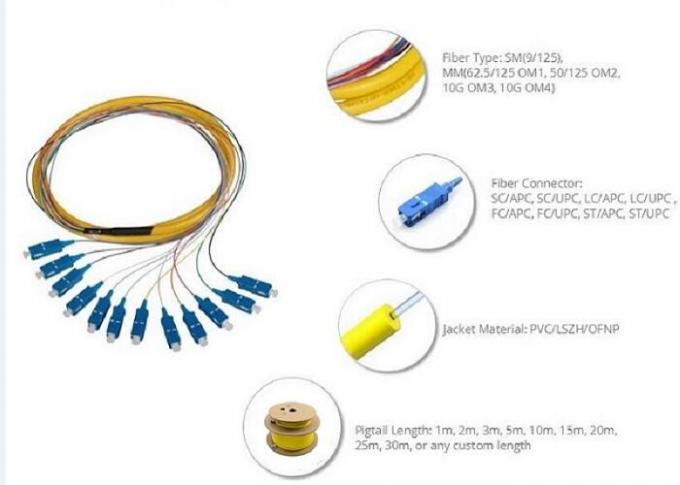

4. Ordering Information
Cable Dia: 0.9mm/2.0mm/3.0mm
Connector: FC, LC, SC,ST,MU, D4, MTRJ,MPO,DIN,E2000
Fiber Type: 9/125um SM; 50/125um MM; 62.5/125um MM; OM3; OM4
Ferrule: PC, APC,UPC
Cable number: simplex, duplex, multi-fiber,ribbon
Length: 1m/2m/3m customized
Color: aqua,black,biege,blue,gray,orange,white,yellow etc
5. FAQ:
1. Q: How can I get your quotation?
A: Please provide us informations as below:
1. Item Number.
2. Quantity.
3. Company Profile (Name, Tel, Fax, Address, and Webpage)
4. Any Other Relevant Details.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: Terms of payment?
A: We accept payment as the following.
1).100% TT in advance.
2). 30% T/T deposit, 70% balance before delivery.
4. Q: Can you do OEM?
A: Yes we can.
5. Q: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20days usually.
6. Q: Can i get your e-catalog?
A: You can give me a inquiry, i will send it to your email.
6. Nia Fiber Service:
Nia Fiber was founded in 2010 , starting with power cable and more than 6-year experiences in FTTH production, has provides range of products for Structured Cabling System ( SCS ).
Carfiber is located in Shenzhen, China with one facility around 5000 square meters. Based on high quality manpower and professional experiences in this industrials . We have the confidence and ability to design and manufacture various products for customers.
Own R&D team to improve our products according to real need from End User, your request is our goal!
Nia Fiber can be your trusted consultant to handle Data Center, Enterprise and Industrial intelligent structured cabling system.
We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
