Unitube Non Metallic Fiber Optic Cable 8 Core Non - Armored 2KM With PE Sheath
1. Description

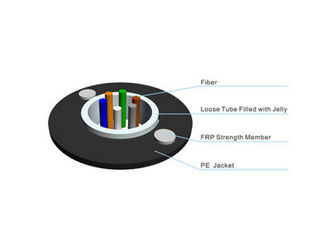

The fibers ,250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube,water-blocking material is applied to keep the cable watergith.Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides.The cable is completed with a polyethylene(PE) sheath.
2. Features:
Good mechanical and environmental performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
Two parallel FRPs ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Small diameter,light weight and friendly installation.
3. Optical Characteristics
| Items |
Fiber type |
| 50/125um |
62.5/125um |
G.652 |
G.655 |
| Attenuation(+20℃) |
@850nm |
≤3.0dB/km |
≤3.3dB/km |
|
|
| @1300nm |
≤1.0dB/km |
≤1.0dB/km |
|
|
| @1310nm |
|
|
≤0.36dB/km |
≤0.40dB/km |
| @1550nm |
|
|
≤0.22dB/km |
≤0.23dB/km |
| Bandwidth (Class A) |
@850nm |
≥500MHz•km |
≥200MHz•km |
|
|
| @1300nm |
≥1000MHz•km |
≥600MHz•km |
|
|
| Numerical Aperture |
0.200±0.015NA |
0.275±0.015NA |
|
|
| Cable Cut-off Wavelength λcc |
|
|
≤1260nm |
≤1450nm |
4. Technical Parameters
|
Fiber
Count
|
Cable Diameter
(mm)
|
Cable Weight
(kg/km)
|
Bending Radius
Dynamic/Static
(mm)
|
Tensile Strength
Long/Short term
(N)
|
Crush Resistance
Long/Short term
(N/100mm)
|
| 2~12 |
10.0 |
8.1 |
10D/20D |
400/1000 |
300/1000 |
|
Note:
Transport/Storage/Operating Temperature: -40Ċ～+70Ċ.
D is overall diameter of round cable.
All data in the table are for reference and subject to change without notification.
|
5. Our Serivces
Any question will be replied within 24 hours.
Professinal manufacture,Welcom to vist our company.
100% test before shipping.
OEM/ODM is avaliable(As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)
6. FAQ
Are you a trade company or a manufacturer?
We are an manufacturer specialized in Fiber Optic PLC splitter, Patch Cords,Adapter ,Fast connector and other Communication Products. OEM & ODM service are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick up from our office.
The cable marking can be as required to printing?
Yes,You have only to give us your marking.
