250um Outdoor Optical Fiber Cable 48 Core 2KM PE Sheath Hydrolysis Resistant

I'm Online Chat Now

250um Outdoor Optical Fiber Cable 48 Core 2KM PE Sheath Hydrolysis Resistant

China 250um Outdoor Optical Fiber Cable 48 Core 2KM PE Sheath Hydrolysis Resistant supplier

Large Image :  250um Outdoor Optical Fiber Cable 48 Core 2KM PE Sheath Hydrolysis Resistant

Product Details:


Payment & Shipping Terms:

Minimum Order Quantity: 1 Kilometer/Kilometers
Packaging Details: 2kilometer packing
Delivery Time: 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 5000 Kilometer/Kilometers per Month
Contact Now
Detailed Product Description
Operating Temperature: -40~+70℃ Fiber Type: G652D Or As Requested
Cable Type: GYTS Cable Stength Member: FRP Or Steel Wire
Sheath Material: PE Or As Requested Sheath Color Force: Black
Fiber Capacity: 2 To 144 Fibers Length Per Roll: 2KM Or As Requested

250um outdoor optical fiber cable 48 core 2KM PE Sheath hydrolysis resistant
1. Description

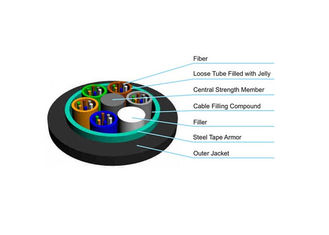

The fibers ,250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers ) are stranded around the strength member into a compact and circular cable core The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
2. Optical Characteristics

ItemsFiber type
@1310nm  ≤0.36dB/km≤0.40dB/km
@1550nm  ≤0.22dB/km≤0.23dB/km
Bandwidth (Class A)@850nm≥500MHz•km≥200MHz•km
Numerical Aperture0.200±0.015NA0.275±0.015NA
Cable Cut-off Wavelength λcc  ≤1260nm≤1450nm

3. Technical Parameters



 Tubes Count

Cable Diameter

Cable Weight

Bending Radius

Tensile Strength
Long/Short term

Crush Resistance
Long/Short term


ransport/Storage/Operating Temperature: -40Ċ~+70Ċ.
D is overall diameter of round cable.
All data in the table are for reference and subject to change without notification.

 250um Outdoor Optical Fiber Cable 48 Core 2KM PE Sheath Hydrolysis Resistant
4. Features:
Good mechanical and environmental performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
Specially designed compact structure is good at preventing loose tubes from shrinking.
Crush resistance and flexibility.
PE sheath protects cable from ultraviolet radiation.
The following measures are taken to ensure the cable watertight:
    Steel wire used as the central strength member.
    Loose tube filling compound.
    100% cable core filling.
    PSP enhancing moisture-proof.
5. Our Serivces
Any question will be replied within 24 hours.
professional supplier,Welcom to vist our company.
100% test before shipping.
OEM/ODM is avaliable(As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)
6. FAQ
Are you a trade company or a manufacturer?
We are a supplier specialized in Fiber Optic PLC splitter, Patch Cords,Adapter ,Fast connector and other Communication Products. OEM & ODM service are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick up from our office.
The cable marking can be as required to printing?
Yes,You have only to give us your marking.
