Low PDL Stable 1X16 PLC Splitter , 900um Steel Tube Type Bare PLC Splitter
Planar Lightwave Circuit Splitter (PLC Splitter) is based on planar waveguide optical power distribution products, with low insertion loss and polarization dependent loss, small size, wide operating wavelength range, high channel uniformity and good characteristics, generally used in passive optical network (EPON, BPON, GPON, etc.) to realize the optical power splitting. Our PLC splitters are compliant with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, YD/T 1117-2001 and RoHS standards.
1. Features:
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:From 1260nm to 1650nm
Wide Operating Temperature: From -40°C to 85°C
High Reliability and Stability
2. Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting
3. Specifications:
| Parameter |
Configuration |
| N x 4(N=1, 2, 16) |
N x 8 (N=1, 2, 8) |
N x 16 (N=1, 2, 16) |
|
| Operate Wavelength(nm) |
1310/1550, or customized |
| Bandwidth(nm) |
± 20 |
| Max. Excess Loss(dB) |
0.2 |
0.3 |
0.4 |
|
| Typ. Insertion Loss(dB) |
6.2 |
9.3 |
12.4 |
|
| Max. Insertion Loss(dB) |
6.8 |
10.2 |
13.6 |
|
| Uniformity(dB) |
1.2 |
1.8 |
2.4 |
|
| PDL(dB) |
0.08 |
0.12 |
0.16 |
|
| Thermal Stability(dB) |
0.2 |
0.3 |
0.4 |
|
| Directivity(dB) |
≥ 60 |
| Operate Temperature |
-90 |
| Lead Length(m) |
1 or customized |
| Lead Type(mm) |
φ 3.0, φ 2.0, φ 0.9 |
| Package Dimension |
A: φ 3.0, L=50 |
B: 89*19*8 |
C: 99*79*9 |
|
| |
|

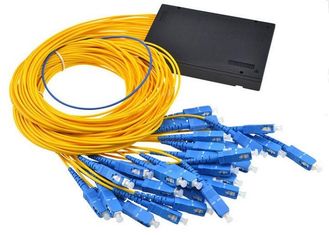

4. Pictures:
5. Our Service:
1. Are you a trade company or a manufacturer?
We are an manufacturer specialized in Fiber Optic PLC splitter, Patch Cords,Adapter ,Fast connector and other Communication Products. OEM & ODM service are available.
2. What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
3. Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL, or you can call your courier to pick up from our office.
